FAIRCHILD A-10 Thunderbolt 2

Aircraft
Name:
A-10 Thunderbolt 2
Manufacturer:
Body:
Narrow
Wing:
Fixed Wing
Position:
Low wing
Tail:
Double fin, low set
WTC
M
APC
C
Type Code:
L2J
Engine:
Jet
Engine Count:
Multi
Position:
Both sides of rear fuselage
Landing gear:
Tricycle retractable
Manufacturered as
FAIRCHILD (1) A-10 Thunderbolt 2
FAIRCHILD (1) OA-10 Thunderbolt 2
FAIRCHILD (1) Thunderbolt 2

A10

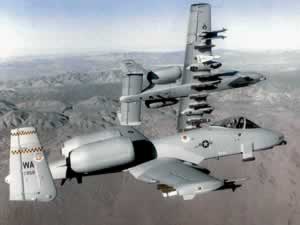

The A-10 Thunderbolt II is an American single-seat, twin-engine, straight-wing jet aircraft developed by Fairchild-Republic in the early 1970s. The A-10 was designed for a United States Air Force requirement to provide close air support (CAS) for ground forces by attacking tanks, armoured vehicles, and other ground targets with a limited air interdiction capability. It is the first U.S. Air Force aircraft designed exclusively for close air support.

Technical Data
Wing span:
17.53 m
Length:
16.26 m
Height:
4.47 m
Powerplant:

2 x 40.3 kN GE TF34-GE100 high bypass turbofans.

Engine Model:
General Electric TF34
Indicative Performance Data
Take-Off
V2:
140 kts
Distance:
1200 m
MTOW:
22700 kg
Initial Climb (to 5000 ft)
IAS:
170 kts
ROC:
6000 ft/min
Initial Climb (to FL150)
IAS:
300 kts
ROC:
2400
Initial Climb (to FL240)
IAS:
300 kts
ROC:
2400 ft/min
MACH Climb
MACH:
0.63
ROC:
2000 ft/min
Cruise
TAS:
300 kts
MACH:
0.58
Ceiling:
340
Range:
540 NM
Initial Descent (to FL240)
MACH:
0.67
ROD:
5000 ft/min
Descent (to FL100)
IAS:
300 kts
ROD:
5000 ft/min
Descent (FL100 & below)
IAS:
250 kts
MCS:
n/a
ROD:
1500 ft/min
Approach
Vapp (IAS):
140 kts
Distance:
610 m
