AGUSTA A-129

Aircraft
Name:
A-129
Manufacturer:
AGUSTA
Wing:
Rotary
Position:
Four-blade main rotor
Tail:
Two-blade tail rotor
WTC:
M
APC:
A
Type Code:
H2T
Engine:
Turboshaft
Engine Count:
Multi
Position:
Behind cabin
Landing gear:
Tricycle retractable
Manufacturered as
AGUSTA A-129 Mangusta
AGUSTA Mangusta

A129

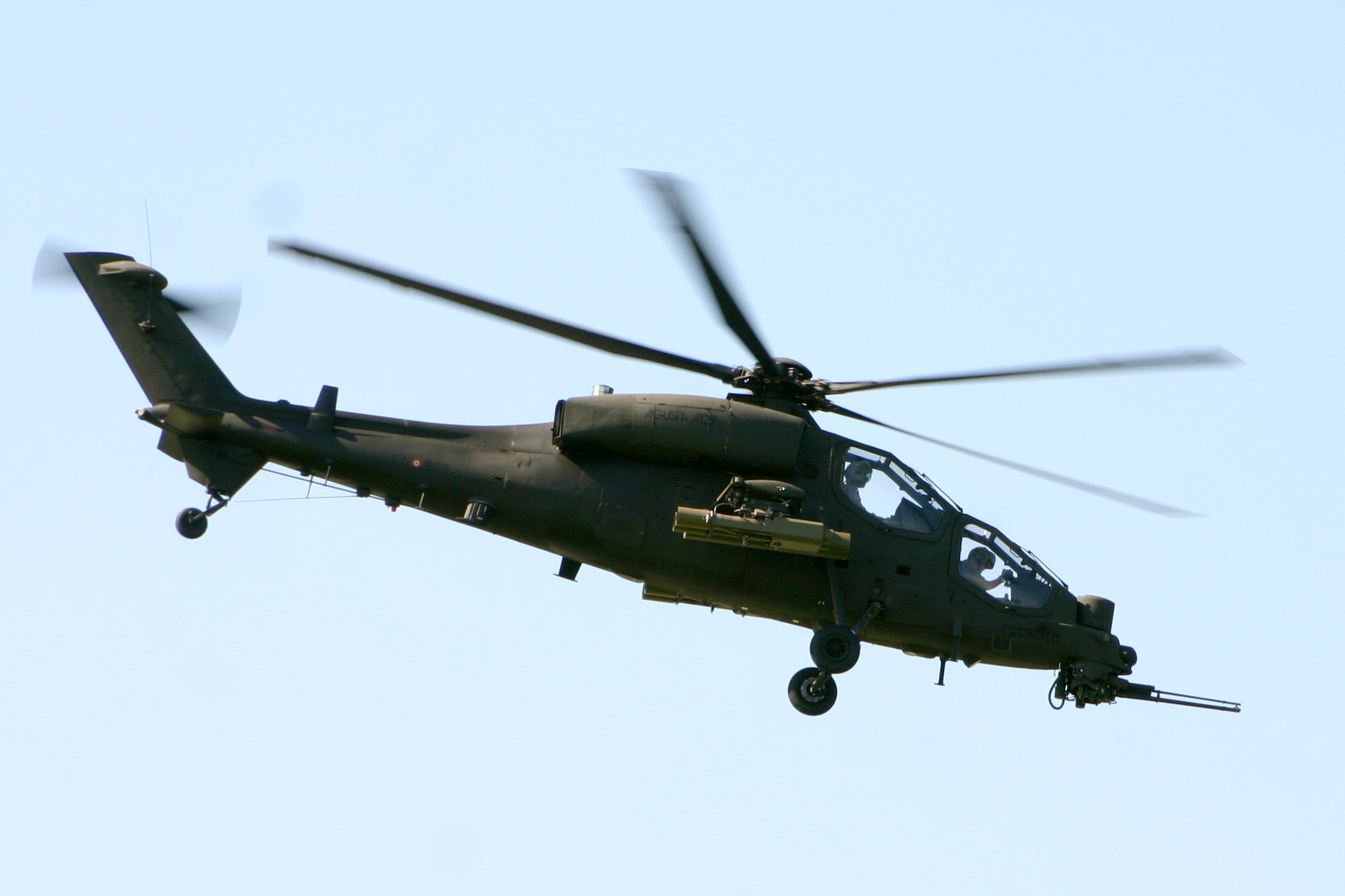

The Agusta A129 Mangusta is an attack helicopter originally designed and produced by Agusta in Italy.

Technical Data
Wing span:
11.90 m
Length:
12.16 m
Height:
3.42 m
Powerplant:

2 x Rolls-Royce Gem 2-1004D (license built by Piaggio) turboshafts, 664 kW (890 shp) each.

Engine Model:
Rolls-Royce Gem
Indicative Performance Data
Take-Off
V2:
n/a
Distance:
n/a
MTOW:
3554 kg
Initial Climb (to 5000 ft)
IAS:
90 kts
ROC:
1890 ft/min
Initial Climb (to FL150)
IAS:
135 kts
ROC:
500
Initial Climb (to FL240)
IAS:
n/a
ROC:
n/a
MACH Climb
MACH:
n/a
ROC:
n/a
Cruise
TAS:
135 kts
MACH:
n/a
Ceiling:
155
Range:
275 NM
Initial Descent (to FL240)
MACH:
n/a
ROD:
n/a
Descent (to FL100)
IAS:
140 kts
ROD:
2000 ft/min
Descent (FL100 & below)
IAS:
100 kts
MCS:
n/a
ROD:
1000 ft/min
Approach
Vapp (IAS):
40 kts
Distance:
n/a
