A21N
AIRBUS A-321neo
AIRBUS A-321neo
Aircraft
Name
A-321neo
Manufacturer
Body
Narrow
Wing
Fixed Wing
Position
Low wing
Tail
Regular tail, mid set
WTC
M
APC
C
Type Code
L2J
Aerodrome Reference Code
4C
RFF Category
7
Engine
Jet
Engine Count
Multi
Position
Underwing mounted
Landing gear
Tricycle retractable
Manufactured as
A21N
Short to medium range single aisle airliner based on the Airbus A-321. This is the stretched fuselage variant of the A320 family of aircraft. The suffix neo stands for new engine option. The neo series of the A320 family was developed since 2010 with first aircraft being delivered in 2016. These aircraft feature new engines (PW 1100G or CFM LEAP-1A) and a new type of wingtips, called sharklets.

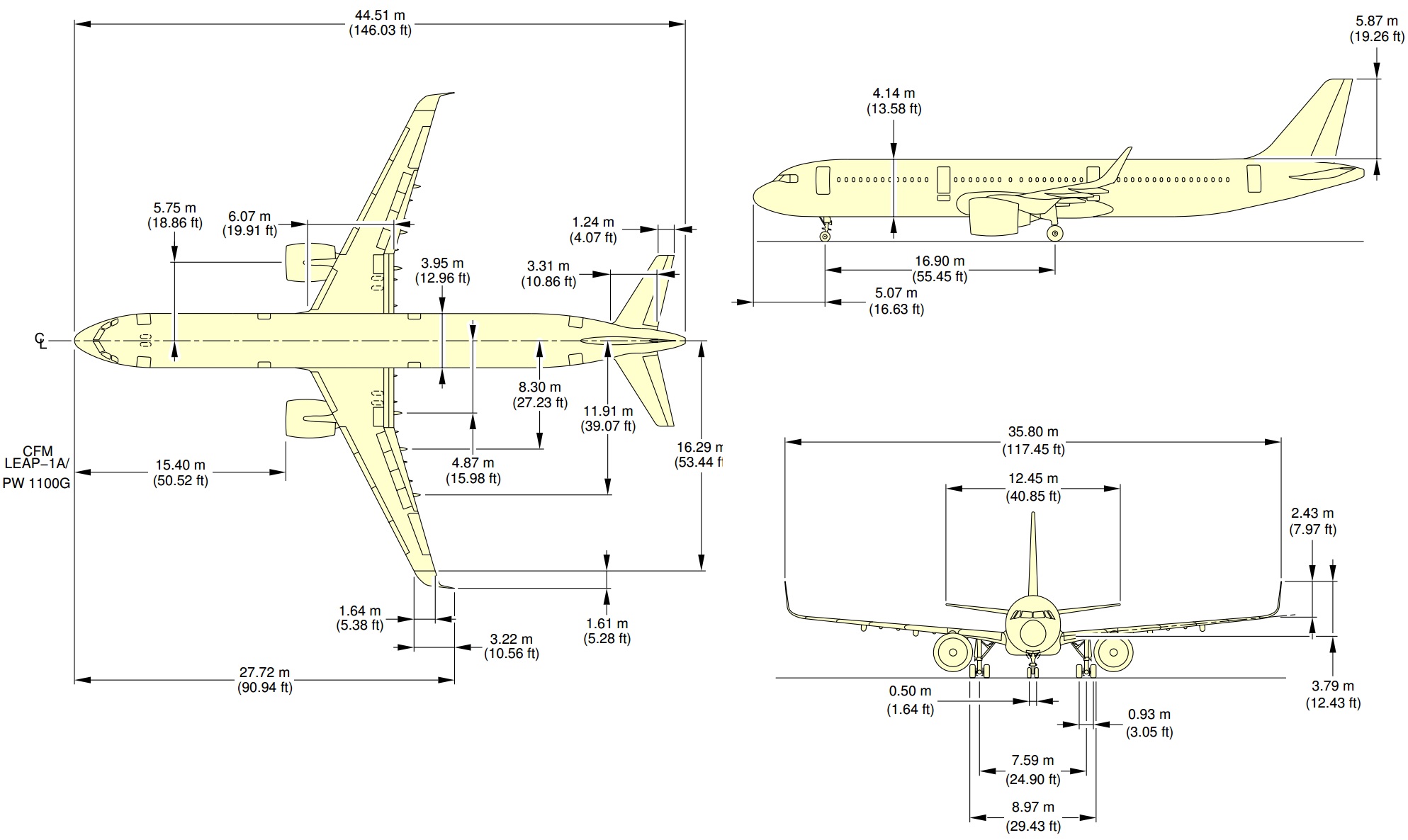

Technical Data
Wing span (metric)
35.80 m
Length (metric)
44.51 m
Height (metric)
11.76 m
Powerplant
2 x PW 1100G (150kN) or
2 x CFM LEAP-1A (109-156kN) turbofans
Engine Model(s)
CFM International LEAP
Pratt & Whitney PW1000G
Indicative Performance Data
Take-Off
V2
145 kts
Distance
2210 m
MTOW
93500 kg
Initial Climb (to 5000 ft)
IAS
175 kts
ROC
2500 ft/min
Initial Climb (to FL150)
IAS
290 kts
ROC
2000
Initial Climb (to FL240)
IAS
290 kts
ROC
1800 ft/min
MACH Climb
MACH
0.78
ROC
1000 ft/min
Cruise
TAS
450 kts
MACH
0.79
Ceiling
390
Range
3500 NM
Initial Descent (to FL240)
MACH
0.78
ROD
1000 ft/min
Descent (to FL100)
IAS
290 kts
ROD
2500 ft/min
Descent (FL100 & below)
IAS
210 kts
MCS
n/a
ROD
n/a
Approach
Vapp (IAS)
134 kts
Distance
1600 m
Accidents & Serious Incidents involving
Further Reading
- Airbus reference document which provide to airlines, MROs, airport planners and operators the general dimensions of the aircraft, as well as the necessary information for ramp, servicing operations or maintenance preparation: Airbus A321: Airplane characteristics for airport planning AC, 01 May 2017
