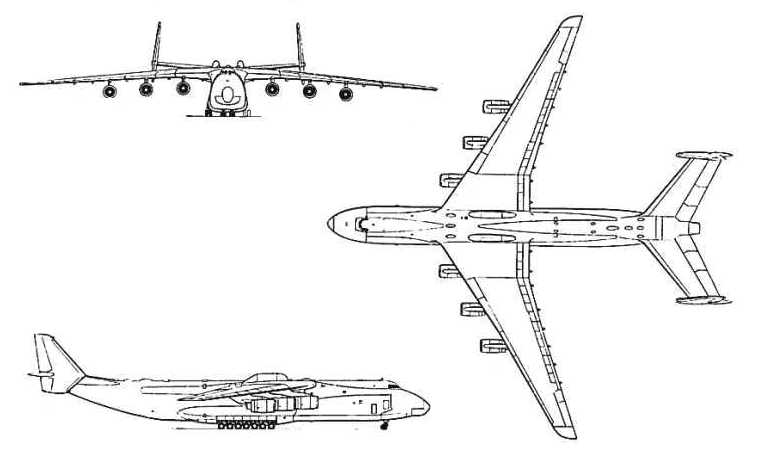

ANTONOV An-225 Mriya

Aircraft
Name:
An-225 Mriya
Manufacturer:
ANTONOV
Body:
Wide
Wing:
Fixed Wing
Position:
High wing
Tail:
Double fin, low set
WTC:
H
Type Code:
L6J
Engine:
Jet
Engine Count:
Multi
Position:
Underwing mounted
Landing gear:
Quadricycle retractable
Manufacturered as
ANTONOV An-225 Mriya
ANTONOV Mriya

A225

The Antonov An-225 Mriya (Ukrainian: Антонов Ан-225 Мрія, NATO reporting name: 'Cossack') is a strategic airlift transport aircraft built by the Antonov Design Bureau, USSR. It is the world's largest fixed-wing aircraft. The design was an enlargement of the successful An-124 Ruslan.

The An-225 is commercially available for flying over-sized payloads due to the unique size of its cargo deck. Currently there is only one aircraft operating. MTOW: 640,000kg.

Technical Data
Wing span:
88.50 m
Length:
84.00 m
Height:
18.10 m
Powerplant:

6 x ZMKB Progress D-18 turbofans, 229.5kN each.

Engine Model:
Progress D-18T
Indicative Performance Data
Take-Off
V2:
195 kts
Distance:
2500 m
MTOW:
640000 kg
Initial Climb (to 5000 ft)
IAS:
250 kts
ROC:
1700 ft/min
Initial Climb (to FL150)
IAS:
330 kts
ROC:
1900
Initial Climb (to FL240)
IAS:
330 kts
ROC:
1900 ft/min
MACH Climb
MACH:
0.78
ROC:
650 ft/min
Cruise
TAS:
458 kts
MACH:
0.78
Ceiling:
450
Range:
2425 NM
Initial Descent (to FL240)
MACH:
0.78
ROD:
1500 ft/min
Descent (to FL100)
IAS:
330 kts
ROD:
2200 ft/min
Descent (FL100 & below)
IAS:
250 kts
MCS:
230 kts
ROD:
1500 ft/min
Approach
Vapp (IAS):
150 kts
Distance:
n/a
