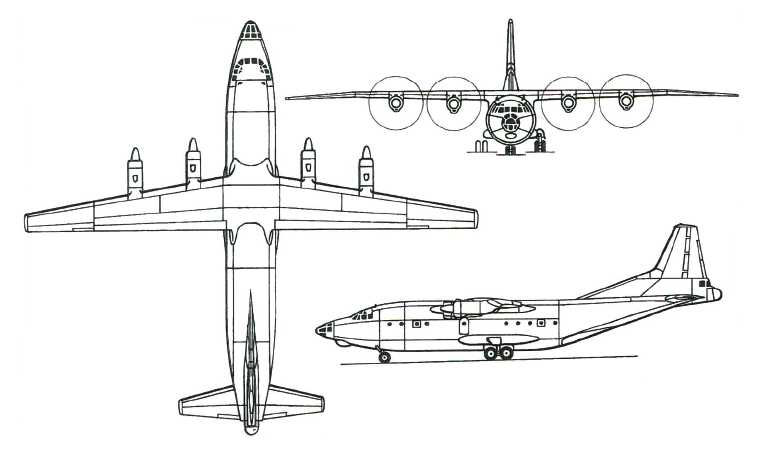

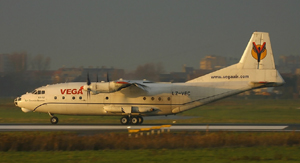

ANTONOV An-12

Aircraft
Name:
An-12
Manufacturer:
ANTONOV
Body:
Narrow
Wing:
Fixed Wing
Position:
High wing
Tail:
Regular tail, mid set
WTC:
M
APC:
C
Type Code:
L4T
Engine:
Turboprop
Engine Count:
Multi
Position:
(Front) Wing leading mounted
Landing gear:
Tricycle retractable
Manufacturered as
ANTONOV An-12
SHAANXI Y-8

AN12

Medium sized turboprop freighter. In service since 1959. Turboprop military freighter development based on the twin turboprop An-8 and An-10. Exists in many versions. Russian equivalent to C-130 Hercules. Cockpit pressurized only. Chinese Version: Y-8 series.

Technical Data
Wing span:
38.00 m
Length:
33.10 m
Height:
10.53 m
Powerplant:

An12: 4 x Ivchenko AI-20k (4.000 SHP) turboprop with 4 blade propellers.Y-8: 4 x Zhuzhou WJ6 (4.250 SHP) turboprop with 4 blade propellers.

Engine Model:
Ivchenko AI-20, Zhuzhou WJ-6
Indicative Performance Data
Take-Off
V2:
130 kts
Distance:
700 m
MTOW:
61000 kg
Initial Climb (to 5000 ft)
IAS:
160 kts
ROC:
1500 ft/min
Initial Climb (to FL150)
IAS:
220 kts
ROC:
1000
Initial Climb (to FL240)
IAS:
220 kts
ROC:
800 ft/min
MACH Climb
MACH:
n/a
ROC:
n/a
Cruise
TAS:
361 kts
MACH:
n/a
Ceiling:
335
Range:
1942 NM
Initial Descent (to FL240)
MACH:
n/a
ROD:
n/a
Descent (to FL100)
IAS:
300 kts
ROD:
1500 ft/min
Descent (FL100 & below)
IAS:
n/a
MCS:
120 kts
ROD:
n/a
Approach
Vapp (IAS):
122 kts
Distance:
500 m
