ANTONOV An-30

Aircraft
Name:
An-30
Manufacturer:
Body:
Narrow
Wing:
Fixed Wing
Position:
High wing
Tail:
Regular tail, low set
WTC
M
APC
B
Type Code:
L2T
Engine:
Turboprop
Engine Count:
Multi
Position:
(Front) Wing leading mounted
Landing gear:
Tricycle retractable
Manufacturered as
ANTONOV An-30

AN30

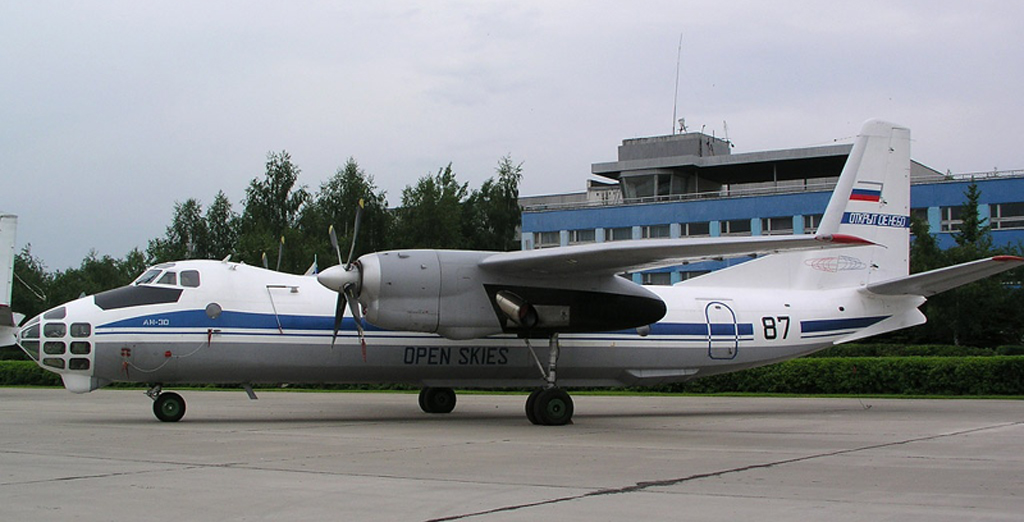

Aerial survey and mapping aircraft. In service since the early seventies. Special version of An-24 with a glazing nose for survey and cartography is used by many countries in the open skies programme. Can easily be turned into and is often used as an An-26 type transport.

Technical Data
Wing span:
29.20 m
Length:
24.30 m
Height:
8.30 m
Powerplant:

2 x 2.820 SHP Ivchenko AI-24VT turboprops with 4 blade propellers.

Engine Model:
Ivchenko AI-24
Indicative Performance Data
Take-Off
V2:
n/a
Distance:
n/a
MTOW:
23000 kg
Initial Climb (to 5000 ft)
IAS:
200 kts
ROC:
1000 ft/min
Initial Climb (to FL150)
IAS:
200 kts
ROC:
800
Initial Climb (to FL240)
IAS:
230 kts
ROC:
400 ft/min
MACH Climb
MACH:
n/a
ROC:
n/a
Cruise
TAS:
286 kts
MACH:
n/a
Ceiling:
290
Range:
1400 NM
Initial Descent (to FL240)
MACH:
n/a
ROD:
n/a
Descent (to FL100)
IAS:
270 kts
ROD:
1500 ft/min
Descent (FL100 & below)
IAS:
240 kts
MCS:
n/a
ROD:
1000 ft/min
Approach
Vapp (IAS):
n/a
Distance:
n/a
