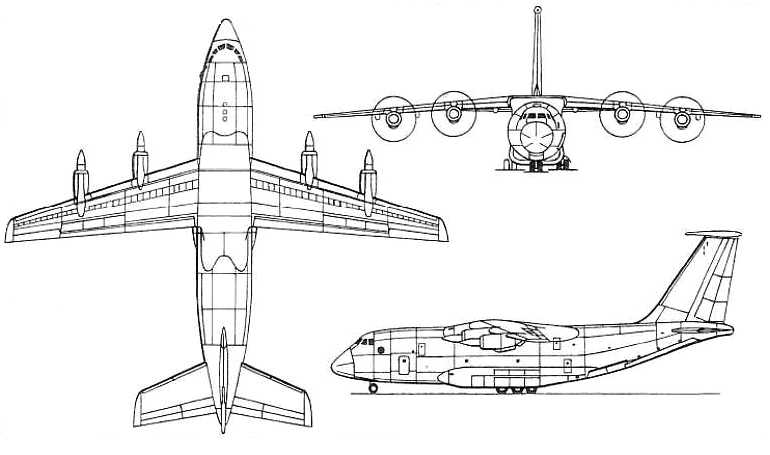

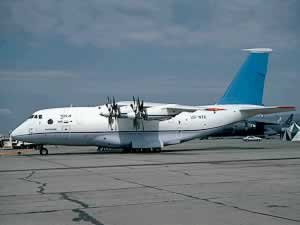

ANTONOV An-70

Aircraft
Name:
An-70
Manufacturer:
ANTONOV
Body:
Narrow
Wing:
Fixed Wing
Position:
High wing
Tail:
Regular tail, low set
WTC:
M
APC:
C
Type Code:
L4T
Engine:
Turboprop
Engine Count:
Multi
Position:
(Front) Wing leading mounted
Landing gear:
Tricycle retractable
Manufacturered as
ANTONOV An-70

AN70

Heavy freighter. On order for Russian and Ukrainian Air Force. Developed as replacement for AN-12. Short take-off freighter version An-70T. Presently existing as prototype only. Planned in many military and civil versions.

Technical Data
Wing span:
44.10 m
Length:
40.70 m
Height:
16.10 m
Powerplant:

4 x 13.800 SHP Progress D-27 turbofans with 14 blade propellers.

Engine Model:
Progress D-27
Indicative Performance Data
Take-Off
V2:
n/a
Distance:
1800 m
MTOW:
130000 kg
Initial Climb (to 5000 ft)
IAS:
220 kts
ROC:
1000 ft/min
Initial Climb (to FL150)
IAS:
400 kts
ROC:
1000
Initial Climb (to FL240)
IAS:
n/a
ROC:
n/a
MACH Climb
MACH:
n/a
ROC:
n/a
Cruise
TAS:
430 kts
MACH:
n/a
Ceiling:
400
Range:
730 NM
Initial Descent (to FL240)
MACH:
n/a
ROD:
n/a
Descent (to FL100)
IAS:
n/a
ROD:
n/a
Descent (FL100 & below)
IAS:
n/a
MCS:
n/a
ROD:
n/a
Approach
Vapp (IAS):
n/a
Distance:
2200 m
