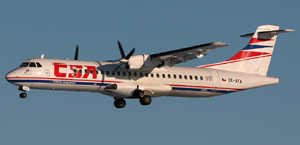

ATR ATR-72-201

Aircraft
Name:
ATR-72-201
Manufacturer:
Body:
Narrow
Wing:
Fixed Wing
Position:
High wing
Tail:
T-tail
WTC
M
APC
B
Type Code:
L2T
Engine:
Turboprop
Engine Count:
Multi
Position:
(Front) Wing leading mounted
Landing gear:
Tricycle retractable
Manufacturered as
AEROSPATIALE ATR-72
ATR ATR-72
AERITALIA ATR-72
AI(R) ATR-72
ALENIA ATR-72

AT72

Turboprop regional airliner. In service since 1989. View the [http://www.skybrary.aero/bookshelf/books/3697.pdf manufacturer's factsheet] which also includes data on the ATR 72-210/211 (ICAO code AT73).

Technical Data
Wing span:
27.10 m
Length:
27.20 m
Height:
7.70 m
Powerplant:

200: 2 x 2.160 SHP PWC PW124B turboprops with 4 blade propellers.

Engine Model:
Pratt & Whitney Canada PW100
Indicative Performance Data
Take-Off
V2:
110 kts
Distance:
1500 m
MTOW:
21500 kg
Initial Climb (to 5000 ft)
IAS:
140 kts
ROC:
1500 ft/min
Initial Climb (to FL150)
IAS:
210 kts
ROC:
1000
Initial Climb (to FL240)
IAS:
210 kts
ROC:
1000 ft/min
MACH Climb
MACH:
n/a
ROC:
n/a
Cruise
TAS:
275 kts
MACH:
n/a
Ceiling:
250
Range:
1500 NM
Initial Descent (to FL240)
MACH:
n/a
ROD:
n/a
Descent (to FL100)
IAS:
260 kts
ROD:
1500 ft/min
Descent (FL100 & below)
IAS:
n/a
MCS:
170 kts
ROD:
n/a
Approach
Vapp (IAS):
120 kts
Distance:
1100 m
