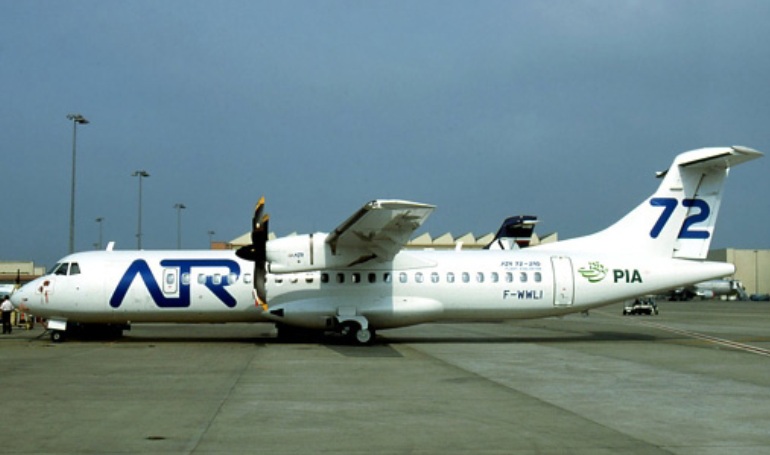

AT73
ATR ATR-72-210
ATR ATR-72-210
Aircraft
Name
ATR-72-210
Manufacturer
Body
Narrow
Wing
Fixed Wing
Position
High wing
Tail
T-tail
WTC
M
APC
B
Type Code
L2T
Engine
Turboprop
Engine Count
Multi
Position
(Front) Wing leading mounted
Landing gear
Tricycle retractable
Manufactured as
AT73
An improved hot/high perrformance version of the ATR 72-200 with PW127 engines rated at 1,849kW (2,480shp). ATCPS power 2,059 kW (2,760shp). Carries 17 to 19 more passengers than standard ATR 72. View the [http://www.skybrary.aero/bookshelf/books/3697.pdf manufacturer's factsheet] which also includes data on the ATR 72-200 (ICAO code AT72).

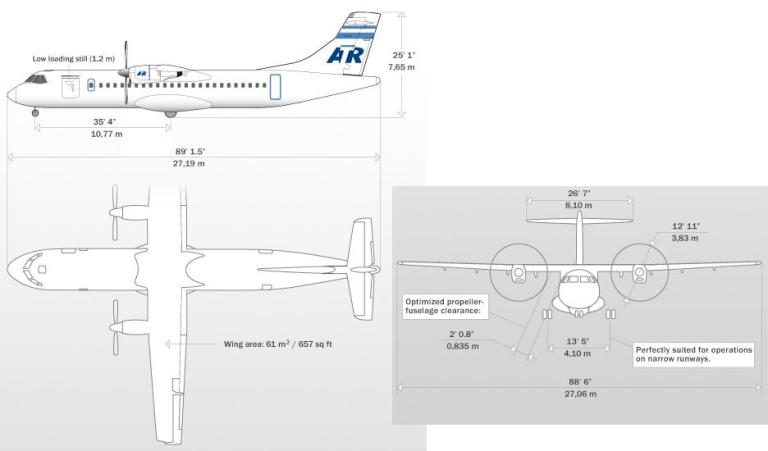

Technical Data
Wing span (metric)
27.05 m
Length (metric)
27.17 m
Height (metric)
7.65 m
Powerplant
2 x 2.480 SHP PWC PW127E turboprops with 6 blade propellers.
Engine Model(s)
Pratt & Whitney Canada PW100
Indicative Performance Data
Take-Off
V2
113 kts
Distance
1211 m
MTOW
21500 kg
Initial Climb (to 5000 ft)
IAS
n/a
ROC
n/a
Initial Climb (to FL150)
IAS
n/a
ROC
n/a
Initial Climb (to FL240)
IAS
n/a
ROC
n/a
MACH Climb
MACH
n/a
ROC
n/a
Cruise
TAS
279 kts
MACH
n/a
Ceiling
250
Range
805 NM
Initial Descent (to FL240)
MACH
n/a
ROD
n/a
Descent (to FL100)
IAS
n/a
ROD
n/a
Descent (FL100 & below)
IAS
n/a
MCS
n/a
ROD
n/a
Approach
Vapp (IAS)
109 kts
Distance
902 m
