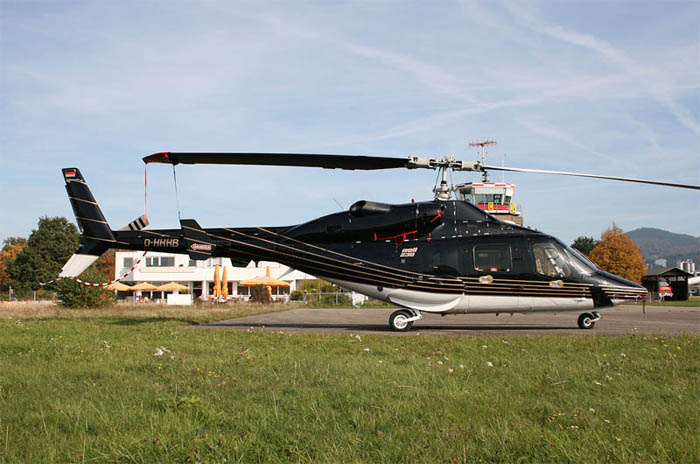

BELL B-230

Aircraft
Name:
B-230
Manufacturer:
Body:
Narrow
Wing:
Rotary
Position:
Two-blade main rotor
Tail:
Two-blade tail rotor
Type Code:
H2T
Engine:
Turboshaft
Engine Count:
Multi
Position:
Above cabin
Landing gear:
Tricycle retractable
Manufacturered as
BELL 230

B230

The Bell 230 is an improved development of the Bell 222 with different engines and other minor changes.

Technical Data
Wing span:
12.80 m
Length:
15.32 m
Height:
3.56 m
Powerplant:

2 x Allison 250-C30G/2 (520 kW) each.

Engine Model:
Allison 250
Indicative Performance Data
Take-Off
V2:
n/a
Distance:
n/a
MTOW:
3810 kg
Initial Climb (to 5000 ft)
IAS:
n/a
ROC:
n/a
Initial Climb (to FL150)
IAS:
n/a
ROC:
n/a
Initial Climb (to FL240)
IAS:
n/a
ROC:
n/a
MACH Climb
MACH:
n/a
ROC:
n/a
Cruise
TAS:
120 kts
MACH:
n/a
Ceiling:
155
Range:
378 NM
Initial Descent (to FL240)
MACH:
n/a
ROD:
n/a
Descent (to FL100)
IAS:
n/a
ROD:
n/a
Descent (FL100 & below)
IAS:
n/a
MCS:
n/a
ROD:
n/a
Approach
Vapp (IAS):
n/a
Distance:
n/a
