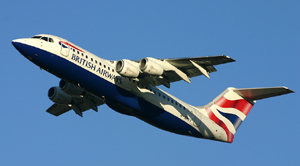

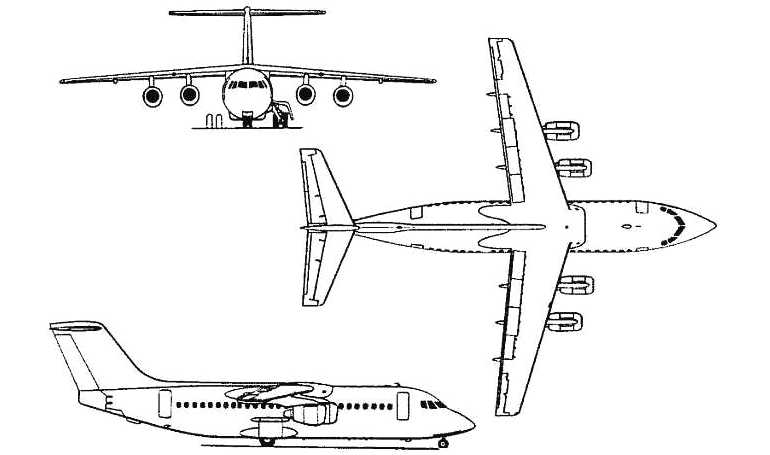

BRITISH AEROSPACE BAe-146-300

Aircraft
Name:
BAe-146-300
Manufacturer:
Body:
Narrow
Wing:
Fixed Wing
Position:
High wing
Tail:
T-tail
WTC
M
APC
C
Type Code:
L4J
Engine:
Jet
Engine Count:
Multi
Position:
Underwing mounted
Landing gear:
Tricycle retractable
Manufacturered as
BRITISH AEROSPACE BAe-146-300

B463

Stretched development of the BAe-146-200. First delivery in 1988. Total of 71 aircraft were built. Later replaced by Avro RJ 100. The B463 is member of the BAe 146 family of aircraft.

Technical Data
Wing span:
26.21 m
Length:
30.99 m
Height:
8.59 m
Powerplant:

4 x 31kN Honeywell ALF 502R-5 turbofans.

Engine Model:
Honeywell ALF502
Indicative Performance Data
Take-Off
V2:
125 kts
Distance:
1509 m
MTOW:
44225 kg
Initial Climb (to 5000 ft)
IAS:
155 kts
ROC:
1500 ft/min
Initial Climb (to FL150)
IAS:
250 kts
ROC:
2000
Initial Climb (to FL240)
IAS:
250 kts
ROC:
1200 ft/min
MACH Climb
MACH:
0.65
ROC:
500 ft/min
Cruise
TAS:
426 kts
MACH:
0.65
Ceiling:
310
Range:
1800 NM
Initial Descent (to FL240)
MACH:
0.68
ROD:
800 ft/min
Descent (to FL100)
IAS:
250 kts
ROD:
3000 ft/min
Descent (FL100 & below)
IAS:
n/a
MCS:
200 kts
ROD:
n/a
Approach
Vapp (IAS):
125 kts
Distance:
1228 m
