B733

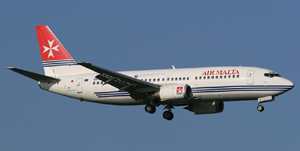

BOEING 737-300

Aircraft
Name
737-300
Manufacturer
Body
Narrow
Wing
Fixed Wing
Position
Low wing
Tail
Regular tail, mid set
WTC
M
APC
C
Type Code
L2J
RFF Category
6
Engine
Jet
Engine Count
Multi
Position
Underwing mounted
Landing gear
Tricycle retractable
Manufacturered as
BOEING 737-300

B733

Short range airliner. In service since 1984. Initial member of second generation of Boeings B737 family (also named classic) with more powerful high bypass engines and improved aerodynamics. In order to secure ground clearance the CFM56 engines have flattened undersides. Stretched version 737-400 and shorter version 737-500. Production ceased in 1999 (2000 for the 400 model).

For more information, see Boeing's B737 family specifications.

Technical Data
Wing span (metric)
28.90 m
Length (metric)
33.44 m
Height (metric)
11.10 m
Powerplant

2 x CFM56-3B1 (90 kN) or

Engine Model(s)
CFM International CFM56
Indicative Performance Data
Take-Off
V2
140 kts
Distance
1600 m
MTOW
56470 kg
Initial Climb (to 5000 ft)
IAS
165 kts
ROC
2500 ft/min
Initial Climb (to FL150)
IAS
270 kts
ROC
2000
Initial Climb (to FL240)
IAS
270 kts
ROC
1400 ft/min
MACH Climb
MACH
0.70
ROC
1000 ft/min
Cruise
TAS
429 kts
MACH
0.75
Ceiling
370
Range
1600 NM
Initial Descent (to FL240)
MACH
0.70
ROD
800 ft/min
Descent (to FL100)
IAS
270 kts
ROD
3500 ft/min
Descent (FL100 & below)
IAS
220 kts
MCS
210 kts
ROD
1500 ft/min
Approach
Vapp (IAS)
130 kts
Distance
1400 m
