BOEING 737-600

Aircraft
Name:
737-600
Manufacturer:
Body:
Narrow
Wing:
Fixed Wing
Position:
Low wing
Tail:
Regular tail, mid set
WTC
M
APC
C
Type Code:
L2J
RFF Category:
6
Engine:
Jet
Engine Count:
Multi
Position:
Underwing mounted
Landing gear:
Tricycle retractable
Manufacturered as

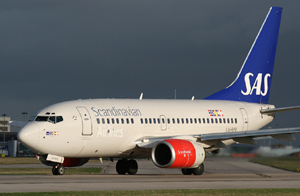

BOEING 737-600

B736

Short range airliner. In service since 1998. The first and shortest version of the BOEING 737 third generation called next generation. All versions have more powerful and efficient engines, improved wings and tail sections and modernized cockpits. Replaced the BOEING 737-500.

For more information, see Boeing's B737 family specifications.

Technical Data
Wing span:
34.30 m
Length:
31.27 m
Height:
12.60 m
Powerplant:

2 x CFM56-7B (97,9 kN) turbofans.

Engine Model:
CFM International CFM56
Indicative Performance Data
Take-Off
V2:
135 kts
Distance:
1900 m
MTOW:
56240 kg
Initial Climb (to 5000 ft)
IAS:
185 kts
ROC:
3000 ft/min
Initial Climb (to FL150)
IAS:
250 kts
ROC:
2500
Initial Climb (to FL240)
IAS:
250 kts
ROC:
2000 ft/min
MACH Climb
MACH:
0.72
ROC:
1500 ft/min
Cruise
TAS:
460 kts
MACH:
0.79
Ceiling:
410
Range:
3200 NM
Initial Descent (to FL240)
MACH:
0.78
ROD:
1000 ft/min
Descent (to FL100)
IAS:
290 kts
ROD:
3500 ft/min
Descent (FL100 & below)
IAS:
n/a
MCS:
210 kts
ROD:
n/a
Approach
Vapp (IAS):
130 kts
Distance:
1300 m
