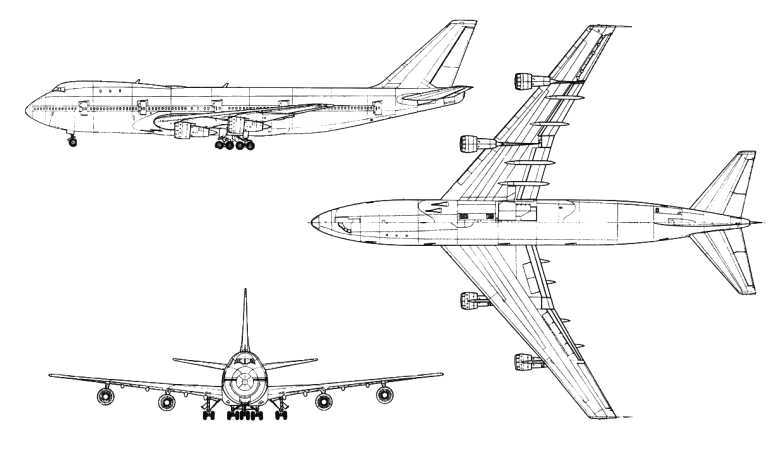

BOEING 747-100

Aircraft
Name:
747-100
Manufacturer:
Body:
Wide
Wing:
Fixed Wing
Position:
Low wing
Tail:
Regular tail, mid set
WTC
H
APC
D
Type Code:
L4J
RFF Category:
9
Engine:
Jet
Engine Count:
Multi
Position:
Underwing mounted
Landing gear:
Tricycle retractable
Manufacturered as

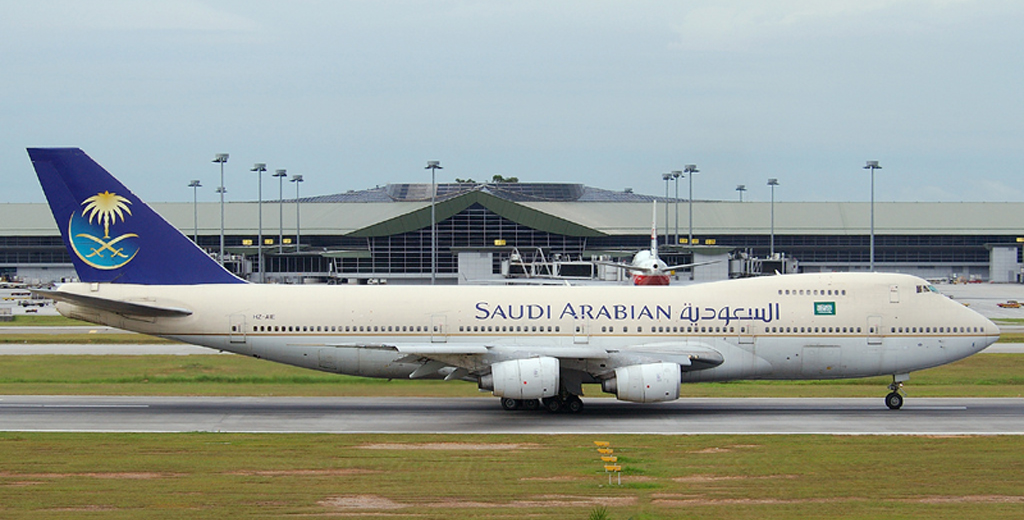

BOEING 747-100

B741

Long range, high capacity wide-body airliner. In service since 1970. Initial model of first generation of 747 family. Last B747-100 was delivered in 1986. More than 200 747-100 were built. Approx. 140 remained in service in 1999, mainly as freighter.

The B741 is member of the B747 family of aircraft.

Technical Data
Wing span:
59.60 m
Length:
70.60 m
Height:
19.30 m
Powerplant:

4 x P&W JT9D-7A (209.9 kN) or
4 x P&W JT9D-7F (213.5 kN) or
4 x GE CF6-45A2 (206.8 kN) turbofans.

Engine Model:
General Electric CF6, Pratt & Whitney JT9D
Indicative Performance Data
Take-Off
V2:
170 kts
Distance:
3190 m
MTOW:
333400 kg
Initial Climb (to 5000 ft)
IAS:
200 kts
ROC:
1000 ft/min
Initial Climb (to FL150)
IAS:
290 kts
ROC:
1500
Initial Climb (to FL240)
IAS:
290 kts
ROC:
1000 ft/min
MACH Climb
MACH:
0.82
ROC:
1000 ft/min
Cruise
TAS:
500 kts
MACH:
0.84
Ceiling:
450
Range:
5300 NM
Initial Descent (to FL240)
MACH:
0.84
ROD:
1000 ft/min
Descent (to FL100)
IAS:
290 kts
ROD:
3000 ft/min
Descent (FL100 & below)
IAS:
n/a
MCS:
240 kts
ROD:
n/a
Approach
Vapp (IAS):
150 kts
Distance:
1900 m
