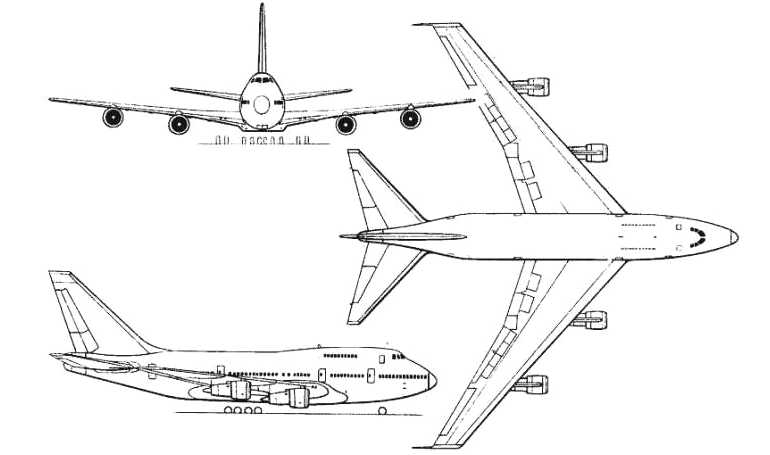

BOEING 747SP

Aircraft
Name:
747SP
Manufacturer:
Body:
Wide
Wing:
Fixed Wing
Position:
Low wing
Tail:
Regular tail, mid set
WTC
H
APC
D
Type Code:
L4J
RFF Category:
8
Engine:
Jet
Engine Count:
Multi
Position:
Underwing mounted
Landing gear:
Tricycle retractable
Manufacturered as
BOEING 747SP

B74S

Long range, high capacity wide-body airliner. In service since 1976. Shortened version of the B747-200 with a better performance (SP for Special Performance), optimised for African and Pacific long range non-stop services.

The B74S is member of the B747 family of aircraft.

Technical Data
Wing span:
59.60 m
Length:
56.30 m
Height:
19.40 m
Powerplant:

4 x P&W JT9D-1AW (218.4 kN) or
4 x GE CF6-45A2 (206.8 kN) or
4 x R-R RB 211-524B (222.8 kN) or
4 x R-R RB 211-524D4 (230 kN) turbofans.

Engine Model:
General Electric CF6, Pratt & Whitney JT9D, Rolls-Royce RB211
Indicative Performance Data
Take-Off
V2:
160 kts
Distance:
2300 m
MTOW:
304000 kg
Initial Climb (to 5000 ft)
IAS:
190 kts
ROC:
3000 ft/min
Initial Climb (to FL150)
IAS:
290 kts
ROC:
3000
Initial Climb (to FL240)
IAS:
290 kts
ROC:
1900 ft/min
MACH Climb
MACH:
0.80
ROC:
1900 ft/min
Cruise
TAS:
535 kts
MACH:
0.88
Ceiling:
451
Range:
6650 NM
Initial Descent (to FL240)
MACH:
0.72
ROD:
800 ft/min
Descent (to FL100)
IAS:
290 kts
ROD:
3000 ft/min
Descent (FL100 & below)
IAS:
250 kts
MCS:
240 kts
ROD:
1500 ft/min
Approach
Vapp (IAS):
140 kts
Distance:
2200 m
