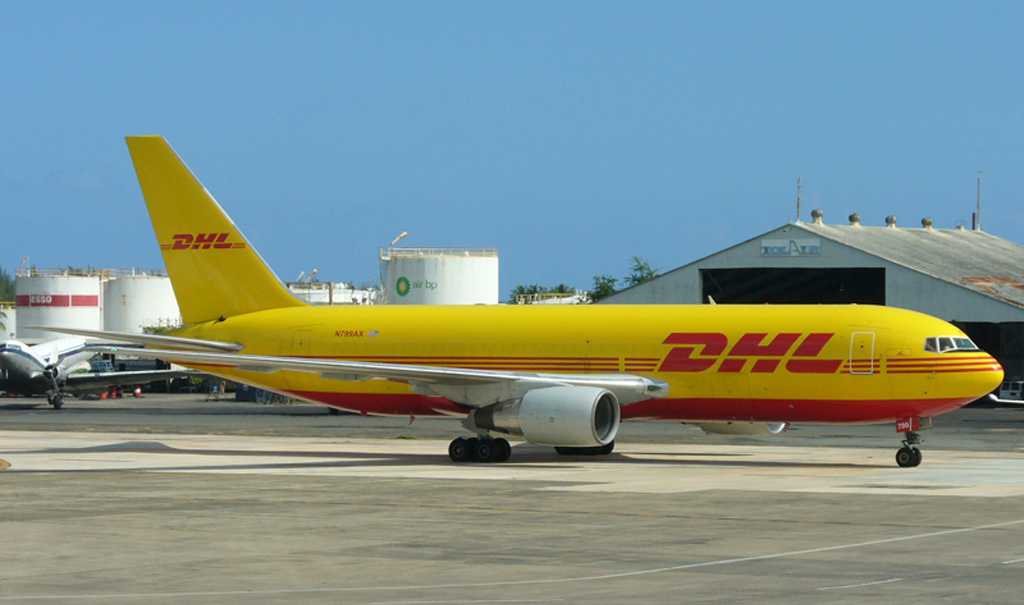

BOEING 767-200ER

Aircraft
Name:
767-200ER
Manufacturer:
Body:
Wide
Wing:
Fixed Wing
Position:
Low wing
Tail:
Regular tail, mid set
WTC
H
APC
D
Type Code:
L2J
RFF Category:
7
Engine:
Jet
Engine Count:
Multi
Position:
Underwing mounted
Landing gear:
Tricycle retractable
Manufacturered as
BOEING 767-200
BOEING KC-767

B762

Medium to long range wide-body airliner. In service since 1982 (200ER since 1984). Tandem development with 757. Exists in an ER (extended range) version for Extended Range Twin Engine Operation

.

The B762 is member of the B767 family of aircraft.

Technical Data
Wing span:
47.60 m
Length:
48.50 m
Height:
15.90 m
Powerplant:

2 x P&W PW4062 (281.6 kN) or
2 x GE CF6-80C2B7F (276.2 kN).

Engine Model:
General Electric CF6, Pratt & Whitney PW4000
Indicative Performance Data
Take-Off
V2:
160 kts
Distance:
2700 m
MTOW:
179170 kg
Initial Climb (to 5000 ft)
IAS:
190 kts
ROC:
2000 ft/min
Initial Climb (to FL150)
IAS:
290 kts
ROC:
2500
Initial Climb (to FL240)
IAS:
290 kts
ROC:
1400 ft/min
MACH Climb
MACH:
0.78
ROC:
1500 ft/min
Cruise
TAS:
470 kts
MACH:
0.80
Ceiling:
430
Range:
6600 NM
Initial Descent (to FL240)
MACH:
0.78
ROD:
2000 ft/min
Descent (to FL100)
IAS:
290 kts
ROD:
1600 ft/min
Descent (FL100 & below)
IAS:
n/a
MCS:
220 kts
ROD:
n/a
Approach
Vapp (IAS):
135 kts
Distance:
1500 m
