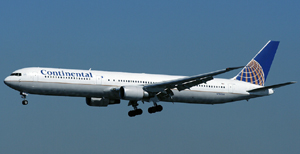

BOEING 767-400

Aircraft
Name:
767-400
Manufacturer:
Body:
Wide
Wing:
Fixed Wing
Position:
Low wing
Tail:
Regular tail, mid set
WTC
H
APC
D
Type Code:
L2J
Aerodrome Reference Code:
4D
RFF Category:
9
Engine:
Jet
Engine Count:
Multi
Position:
Underwing mounted
Landing gear:
Tricycle retractable
Manufacturered as
BOEING 767-400

B764

The Boeing 767 is a mid-size, wide-body twinjet airliner produced by Boeing Commercial Airplanes. Passenger versions of the 767 can carry between 181 and 375 passengers, and have a range of 5200 nm to 6590 nm depending on variant and seating configuration. The Boeing 767 has been produced in three fuselage lengths:

  • the original 767-200 first entered into airline service in 1982,
  • followed by the 767-300 in 1986, and the
  • 767-400ER in 2000.

Extended range versions of the original -200 and -300 models, the 767-200ER and 767-300ER, have been produced with added payload and operating distance capability. The 767-300F, a freighter version, entered service in 1995. The B764 is member of the B767 family of aircraft.

Technical Data
Wing span:
51.90 m
Length:
61.40 m
Height:
16.80 m
Powerplant:

2 x P&W PW4062 (281.6 kN) or
2 x GE CF6-80C2B8F (282.5 kN).

Engine Model:
General Electric CF6, Pratt & Whitney PW4000
Indicative Performance Data
Take-Off
V2:
160 kts
Distance:
2900 m
MTOW:
204120 kg
Initial Climb (to 5000 ft)
IAS:
190 kts
ROC:
2500 ft/min
Initial Climb (to FL150)
IAS:
290 kts
ROC:
2200
Initial Climb (to FL240)
IAS:
290 kts
ROC:
1800 ft/min
MACH Climb
MACH:
0.72
ROC:
1000 ft/min
Cruise
TAS:
460 kts
MACH:
0.80
Ceiling:
430
Range:
5645 NM
Initial Descent (to FL240)
MACH:
0.72
ROD:
1000 ft/min
Descent (to FL100)
IAS:
290 kts
ROD:
3000 ft/min
Descent (FL100 & below)
IAS:
n/a
MCS:
220 kts
ROD:
n/a
Approach
Vapp (IAS):
150 kts
Distance:
1800 m
