BCS1

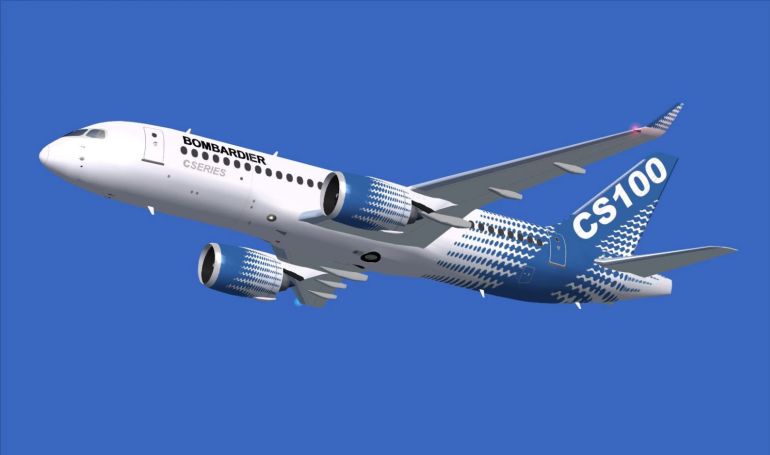

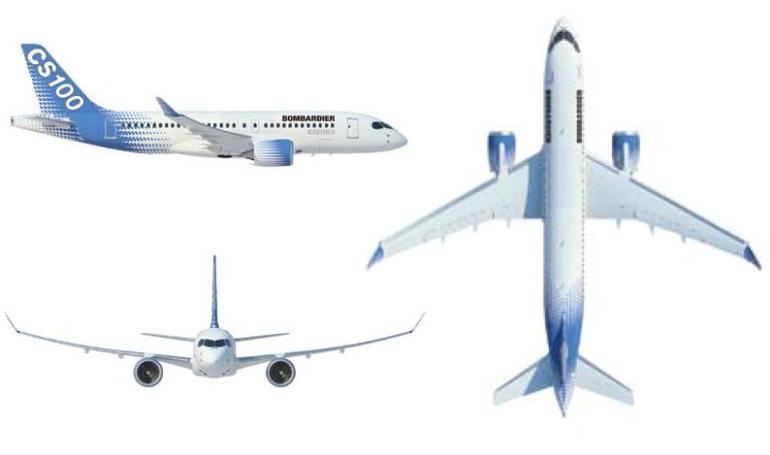

BOMBARDIER BD-500 CSeries CS100
BOMBARDIER BD-500 CSeries CS100
Aircraft
Name
BD-500 CSeries CS100
Manufacturer
Wing
Fixed Wing
Position
Low wing (winglets)
Tail
Regular tail (Dihedral)
WTC
M
APC
C
Type Code
L2J
Engine
Jet
Engine Count
Multi
Position
Underwing mounted
Landing gear
Tricycle retractable
Manufactured as
BOMBARDIER CSeries CS100
BOMBARDIER BD-500 CSeries CS100
BCS1
Narrow-body, twin-engine, medium-range jet airliners originally designed by Canadian manufacturer Bombardier Aerospace able to carry between 108 and 135 passengers. First delivery in 2016. The Bombardier CSeries
aircraft contains a high proportion of composite materials and features larger windows.
Technical Data
Wing span (metric)
35.10 m
Length (metric)
35.00 m
Height (metric)
11.50 m
Powerplant
2 x Pratt & Whitney PurePower PW1500G Engines (84.1 kN)
Engine Model(s)
Pratt & Whitney PW1000G
Indicative Performance Data
Take-Off
V2
n/a
Distance
1463 m
MTOW
60781 kg
Initial Climb (to 5000 ft)
IAS
n/a
ROC
n/a
Initial Climb (to FL150)
IAS
n/a
ROC
n/a
Initial Climb (to FL240)
IAS
n/a
ROC
n/a
MACH Climb
MACH
n/a
ROC
n/a
Cruise
TAS
n/a
MACH
0.78
Ceiling
410
Range
3100 NM
Initial Descent (to FL240)
MACH
n/a
ROD
n/a
Descent (to FL100)
IAS
n/a
ROD
n/a
Descent (FL100 & below)
IAS
n/a
MCS
n/a
ROD
n/a
Approach
Vapp (IAS)
n/a
Distance
1387 m
