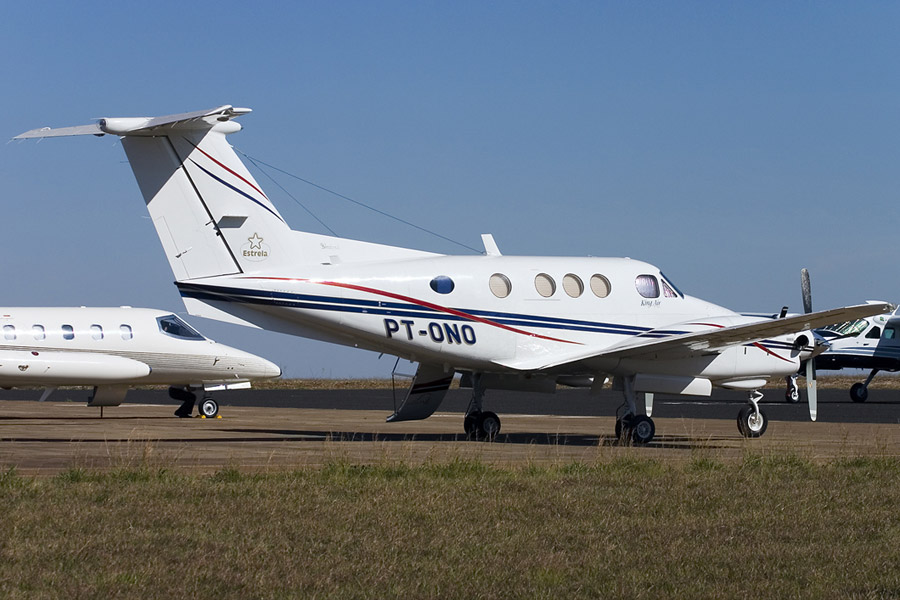

BEECH King Air (F90)

Aircraft
Name:
King Air (F90)
Manufacturer:
Body:
Narrow
Wing:
Fixed Wing
Type Code:
L2T
Engine:
Turboprop
Engine Count:
Multi
Manufacturered as
BEECH 90 (F90) King Air
BEECH King Air (F90)

BE9T

Further refinement of the 90 series resulted in the Model F90 and follow-on Model F90-1. The F-models featured the T-tail of the Super King Air mated to the fuselage and wings of the E90, with PT6A-135 engines of 560 kW driving four-bladed propellers. The F90 prototype flew on 16 January 1978 and 203 production versions followed between 1979 and 1983, when the F90 was superseded by the F90-1. The F90-1 was put into production with redesigned engine cowlings, upgraded PT6A-135A engines, hydraulic landing gear, and triple-fed electrical bus.

Technical Data
Wing span:
15.30 m
Length:
10.80 m
Height:
4.50 m
Powerplant:

2 x Pratt & Whitney PT6A-135 turbine engines; 750 shp each.

Engine Model:
Pratt & Whitney Canada PT6
Indicative Performance Data
Take-Off
V2:
n/a
Distance:
n/a
MTOW:
5352 kg
Initial Climb (to 5000 ft)
IAS:
n/a
ROC:
n/a
Initial Climb (to FL150)
IAS:
n/a
ROC:
n/a
Initial Climb (to FL240)
IAS:
n/a
ROC:
n/a
MACH Climb
MACH:
n/a
ROC:
n/a
Cruise
TAS:
220 kts
MACH:
n/a
Ceiling:
248
Range:
1525 NM
Initial Descent (to FL240)
MACH:
n/a
ROD:
n/a
Descent (to FL100)
IAS:
n/a
ROD:
n/a
Descent (FL100 & below)
IAS:
n/a
MCS:
n/a
ROD:
n/a
Approach
Vapp (IAS):
n/a
Distance:
n/a
