BERIEV A-40 Albatross

Aircraft
Name:
A-40 Albatross
Manufacturer:
Body:
Narrow
Wing:
Fixed Wing
Position:
High swept wing
Tail:
T-tail
WTC
M
Type Code:
A2J
Engine:
Jet
Engine Count:
Multi
Position:
Over wing mounted
Landing gear:
Amphibian
Manufacturered as
BERIEV A-40 Albatross
BERIEV Albatross

BER4

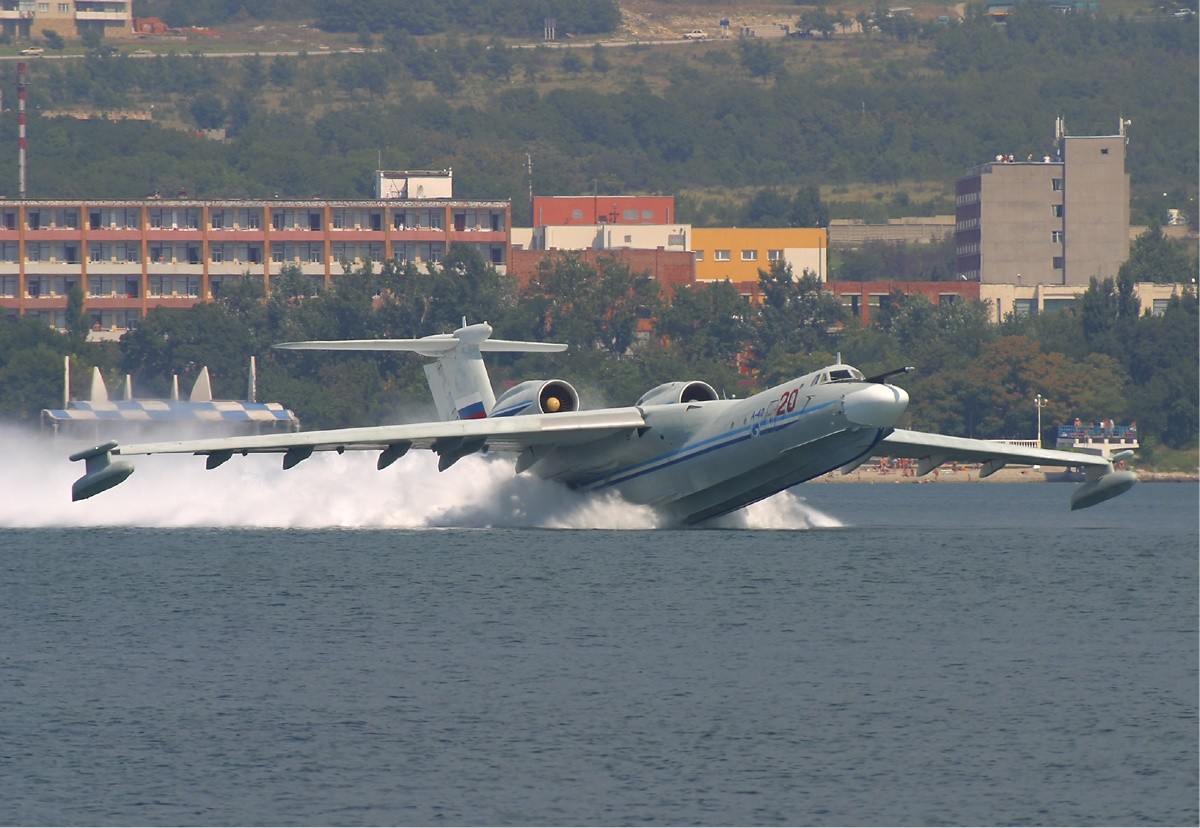

The Beriev A-40 Al'batros (Albatross, NATO reporting name: Mermaid) was a jet-engined amphibious flying boat designed by the Beriev Aircraft Company for the anti-submarine warfare role. Intended as a replacement for the Beriev Be-12 amphibian and the land-based Ilyushin Il-38, the project was suspended after only two prototypes had been manufactured, due to the break up of the Soviet Union.

Technical Data
Wing span:
41.62 m
Length:
43.84 m
Height:
11.00 m
Powerplant:

2 x Soloviev D-30KPV turbofans, (117.7 kN) each;

Engine Model:
Kolesov RD-36-51, Soloviev D-30
Indicative Performance Data
Take-Off
V2:
n/a
Distance:
2000 m
MTOW:
86000 kg
Initial Climb (to 5000 ft)
IAS:
200 kts
ROC:
5900 ft/min
Initial Climb (to FL150)
IAS:
200 kts
ROC:
2000
Initial Climb (to FL240)
IAS:
200 kts
ROC:
1300 ft/min
MACH Climb
MACH:
0.70
ROC:
1300 ft/min
Cruise
TAS:
380 kts
MACH:
0.71
Ceiling:
318
Range:
2212 NM
Initial Descent (to FL240)
MACH:
0.71
ROD:
1500 ft/min
Descent (to FL100)
IAS:
240 kts
ROD:
1500 ft/min
Descent (FL100 & below)
IAS:
n/a
MCS:
200 kts
ROD:
n/a
Approach
Vapp (IAS):
165 kts
Distance:
900 m
