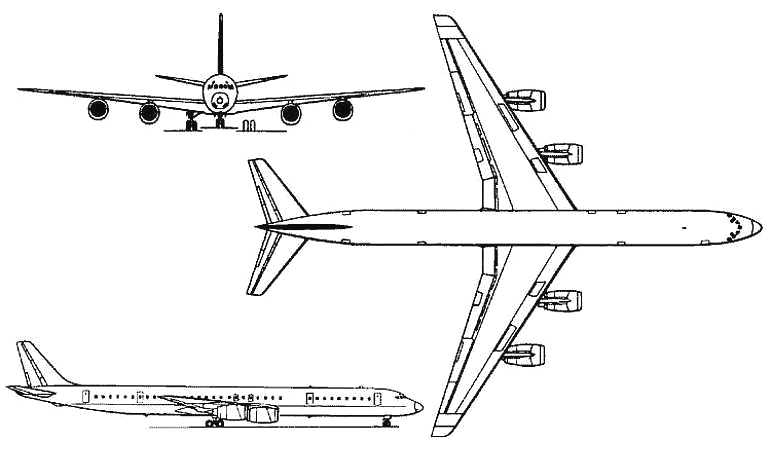

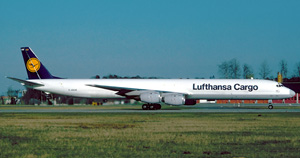

DOUGLAS DC-8-70

Aircraft
Name:
DC-8-70
Manufacturer:
Body:
Narrow
Wing:
Fixed Wing
Position:
Low wing
Tail:
Regular tail, mid set
WTC
H
APC
C
Type Code:
L4J
RFF Category:
8
Engine:
Jet
Engine Count:
Multi
Position:
Underwing mounted
Landing gear:
Tricycle retractable
Manufacturered as
DOUGLAS DC-8-70
MCDONNELL DOUGLAS DC-8-70

DC87

DC-8-71 similar to -61, DC-8-72 to -62 and DC-8-73 to 63. Today mostly used as freighter. Series-72: Wing span: 45,2m Lenght: 48,0m. Series-73: Wing span: 45,2m Lenght: 57,1m. The DC87 is member of the DC-8 family of aircraft.

Technical Data
Wing span:
45.20 m
Length:
57.10 m
Height:
13.10 m
Powerplant:

4 x CFM 56-2C5 (97.9 kN) turbofans.

Engine Model:
CFM International CFM56
Indicative Performance Data
Take-Off
V2:
160 kts
Distance:
3050 m
MTOW:
162025 kg
Initial Climb (to 5000 ft)
IAS:
190 kts
ROC:
2200 ft/min
Initial Climb (to FL150)
IAS:
290 kts
ROC:
1500
Initial Climb (to FL240)
IAS:
290 kts
ROC:
1200 ft/min
MACH Climb
MACH:
0.78
ROC:
1000 ft/min
Cruise
TAS:
460 kts
MACH:
0.80
Ceiling:
410
Range:
4830 NM
Initial Descent (to FL240)
MACH:
0.80
ROD:
1000 ft/min
Descent (to FL100)
IAS:
290 kts
ROD:
2500 ft/min
Descent (FL100 & below)
IAS:
n/a
MCS:
210 kts
ROD:
n/a
Approach
Vapp (IAS):
145 kts
Distance:
2000 m
