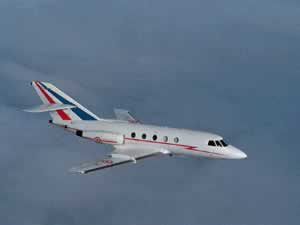

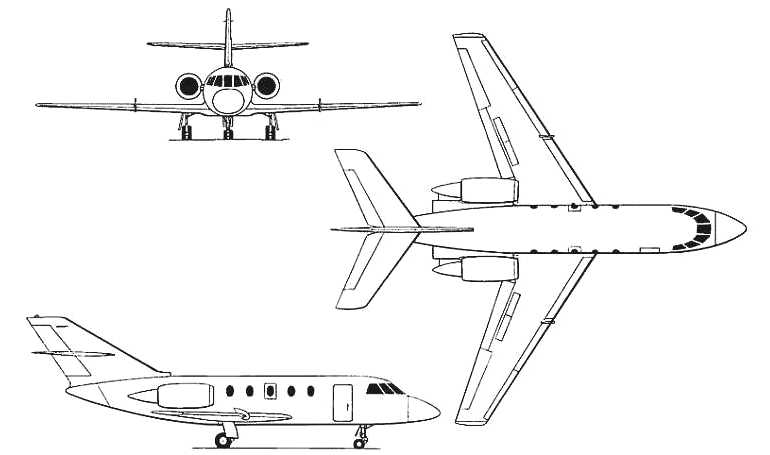

DASSAULT Falcon 20

Aircraft
Name:
Falcon 20
Manufacturer:
Body:
Narrow
Wing:
Fixed Wing
Position:
Low wing
Tail:
Cruciform tail
WTC
M
APC
B
Type Code:
L2J
Engine:
Jet
Engine Count:
Multi
Position:
Both sides of rear fuselage
Landing gear:
Tricycle retractable
Manufacturered as
DASSAULT Falcon 20
DASSAULT Falcon 200
DASSAULT Gardian
DASSAULT Guardian
DASSAULT HU-25 Guardian
DASSAULT Mystere 20
DASSAULT Mystere 200

FA20

Medium range corporate jet. In service since 1965 (200 since 1981). Initial model of Falcon/Mystère family. Replaced by Falcon/Mystère 200, improved development with more powerful engines,improved range and improved fuel consumption. In production until 1988. Production of Falcon/Mystère 20 ceased in 1983. Used in some military versions as VIP transport, ECM trainer and maritime patrol (U.S. Coast Guard type HU-25 Guardian). Falcon/Mystère 200: MTOW 14,500kg.

Technical Data
Wing span:
16.30 m
Length:
17.15 m
Height:
5.32 m
Powerplant:

20: 2 x 19.6 kN GE CF700-2D-2 turbofans.

Engine Model:
Garrett ATF3, General Electric CF700
Indicative Performance Data
Take-Off
V2:
120 kts
Distance:
1600 m
MTOW:
13160 kg
Initial Climb (to 5000 ft)
IAS:
150 kts
ROC:
3000 ft/min
Initial Climb (to FL150)
IAS:
270 kts
ROC:
2000
Initial Climb (to FL240)
IAS:
270 kts
ROC:
1500 ft/min
MACH Climb
MACH:
0.70
ROC:
1500 ft/min
Cruise
TAS:
420 kts
MACH:
0.76
Ceiling:
420
Range:
2300 NM
Initial Descent (to FL240)
MACH:
0.70
ROD:
1000 ft/min
Descent (to FL100)
IAS:
250 kts
ROD:
3000 ft/min
Descent (FL100 & below)
IAS:
220 kts
MCS:
160 kts
ROD:
1500 ft/min
Approach
Vapp (IAS):
110 kts
Distance:
1100 m
