BELL AH-1 Cobra

Aircraft
Name:
AH-1 Cobra
Manufacturer:
Wing:
Rotary
Position:
Two-blade main rotor
Tail:
Two-blade tail rotor
WTC
L
Type Code:
H1T
Engine:
Turboshaft
Engine Count:
Single
Position:
Behind cabin
Landing gear:
Skids
Manufacturered as
BELL 209 HueyCobra
BELL AH-1E HueyCobra
BELL AH-1F HueyCobra
BELL AH-1P HueyCobra
BELL AH-1S HueyCobra
BELL HueyCobra
BELL TAH-1 HueyCobra
BELL TH-1S HueyCobra
FUJI AH-1 HueyCobra
FUJI HueyCobra

HUCO

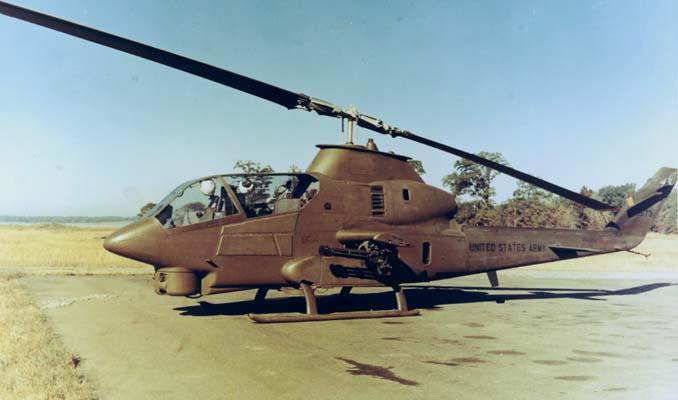

The AH-1 Cobra (company designation: Bell 209) is a two-bladed, single engine attack helicopter manufactured by Bell. It shares a common engine, transmission and rotor system with the older UH-1 Iroquois. The AH-1 is also referred to as the HueyCobra or Snake.

Technical Data
Wing span:
13.60 m
Length:
16.10 m
Height:
4.10 m
Powerplant:

1 x Lycoming T53-L-703 turboshaft, 1,800 shp (1,300 kW)

Engine Model:
Lycoming T53
Indicative Performance Data
Take-Off
V2:
n/a
Distance:
n/a
MTOW:
6350 kg
Initial Climb (to 5000 ft)
IAS:
n/a
ROC:
n/a
Initial Climb (to FL150)
IAS:
n/a
ROC:
n/a
Initial Climb (to FL240)
IAS:
n/a
ROC:
n/a
MACH Climb
MACH:
n/a
ROC:
n/a
Cruise
TAS:
180 kts
MACH:
n/a
Ceiling:
110
Range:
310 NM
Initial Descent (to FL240)
MACH:
n/a
ROD:
n/a
Descent (to FL100)
IAS:
n/a
ROD:
n/a
Descent (FL100 & below)
IAS:
n/a
MCS:
n/a
ROD:
n/a
Approach
Vapp (IAS):
n/a
Distance:
n/a
