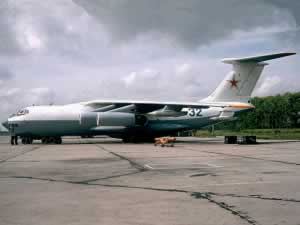

ILYUSHIN Il-76

Aircraft
Name:
Il-76
Manufacturer:
Body:
Narrow
Wing:
Fixed Wing
Position:
High wing
Tail:
T-tail
WTC
H
APC
B
Type Code:
L4J
Engine:
Jet
Engine Count:
Multi
Position:
Underwing mounted
Landing gear:
Tricycle retractable
Manufacturered as
ILYUSHIN Gajaraj
ILYUSHIN Il-76
ILYUSHIN Il-76 Gajaraj
ILYUSHIN Il-78
ILYUSHIN Il-82

IL76

A military transport developed in many versions and subsequently re-engined and produced as a long range civil freighter, the IL-76TD-90. In service since 1975.

Technical Data
Wing span:
50.50 m
Length:
46.60 m
Height:
14.80 m
Powerplant:

76: 4 x 117 kN Soloviev D-30KP turbofans.

Engine Model:
Aviadvigatel PS90, Soloviev D-30
Indicative Performance Data
Take-Off
V2:
n/a
Distance:
850 m
MTOW:
170000 kg
Initial Climb (to 5000 ft)
IAS:
114 kts
ROC:
n/a
Initial Climb (to FL150)
IAS:
n/a
ROC:
n/a
Initial Climb (to FL240)
IAS:
n/a
ROC:
n/a
MACH Climb
MACH:
n/a
ROC:
n/a
Cruise
TAS:
432 kts
MACH:
0.78
Ceiling:
500
Range:
3617 NM
Initial Descent (to FL240)
MACH:
n/a
ROD:
n/a
Descent (to FL100)
IAS:
n/a
ROD:
n/a
Descent (FL100 & below)
IAS:
130 kts
MCS:
n/a
ROD:
n/a
Approach
Vapp (IAS):
130 kts
Distance:
450 m
