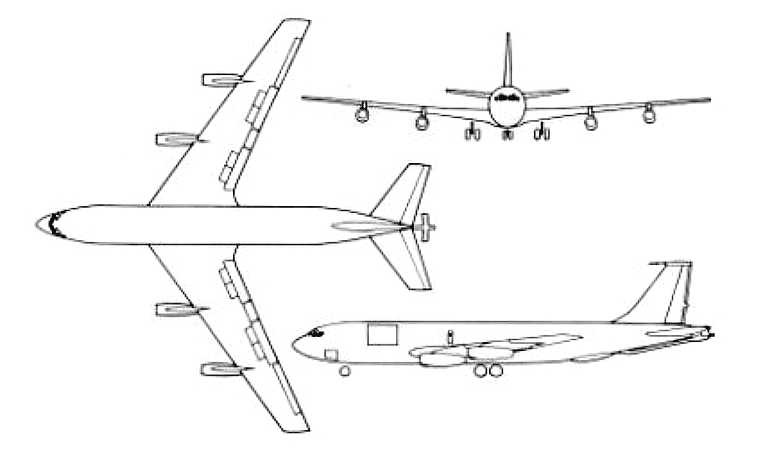

BOEING KC-135

Aircraft
Name:
KC-135
Manufacturer:
Body:
Narrow
Wing:
Fixed Wing
Position:
Low wing
Tail:
Regular tail, mid set
WTC
H
APC
C
Type Code:
L4J
Engine:
Jet
Engine Count:
Multi
Position:
Underwing mounted
Landing gear:
Tricycle retractable
Manufacturered as
BOEING KC-135D Stratotanker
BOEING KC-135E Stratotanker
BOEING Stratotanker (TF33 engines)

K35E

Air-to-air refueling tanker. In service since 1982. Improved development of KC-135 A/B with more powerful ex. civilian TF33 engines (ICAO Designator: K35A). USAF continues to re-engine KC-135 As to KC-135 D/Es and KC-135Rs. Max Mach 0.82

Technical Data
Wing span:
39.90 m
Length:
41.50 m
Height:
12.70 m
Powerplant:

4 x 93.4 kN P&W TF33-PW-100 turbofans.

Engine Model:
Pratt & Whitney TF33
Indicative Performance Data
Take-Off
V2:
n/a
Distance:
n/a
MTOW:
144000 kg
Initial Climb (to 5000 ft)
IAS:
n/a
ROC:
5000 ft/min
Initial Climb (to FL150)
IAS:
n/a
ROC:
n/a
Initial Climb (to FL240)
IAS:
n/a
ROC:
n/a
MACH Climb
MACH:
n/a
ROC:
n/a
Cruise
TAS:
530 kts
MACH:
n/a
Ceiling:
450
Range:
4000 NM
Initial Descent (to FL240)
MACH:
n/a
ROD:
n/a
Descent (to FL100)
IAS:
n/a
ROD:
n/a
Descent (FL100 & below)
IAS:
n/a
MCS:
n/a
ROD:
n/a
Approach
Vapp (IAS):
n/a
Distance:
n/a
