LNP4

LANCAIR Lancair PropJet 4

Aircraft
Name
Lancair PropJet 4
Manufacturer
Body
Narrow
Wing
Fixed Wing
Position
Low wing (winglets)
Tail
Regular tail, mid set
WTC
L
APC
A
Type Code
L1T
Engine
Turboprop
Engine Count
Single
Position
Nose mounted
Landing gear
Tricycle retractable
Manufacturered as
LANCAIR Lancair PropJet 4

LNP4

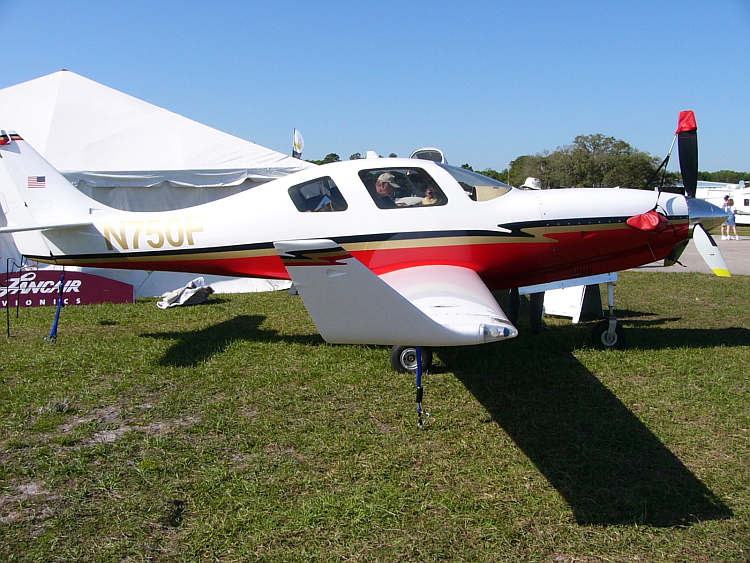

The Lancair Propjet is a four-seat, pressurized, composite aircraft powered by a 750-hp Walter M601E turboprop engine. The aircraft is based on Lancair's successful kit-plane, the Lancair IV.

Technical Data
Wing span (metric)
10.49 m
Length (metric)
7.92 m
Height (metric)
2.40 m
Powerplant

1 x Walter M601E-11 turbine, 750 hp at sea level.

Engine Model(s)
Walter M601
Indicative Performance Data
Take-Off
V2
n/a
Distance
500 m
MTOW
1700 kg
Initial Climb (to 5000 ft)
IAS
n/a
ROC
4000 ft/min
Initial Climb (to FL150)
IAS
n/a
ROC
n/a
Initial Climb (to FL240)
IAS
n/a
ROC
n/a
MACH Climb
MACH
n/a
ROC
n/a
Cruise
TAS
320 kts
MACH
n/a
Ceiling
260
Range
1500 NM
Initial Descent (to FL240)
MACH
n/a
ROD
n/a
Descent (to FL100)
IAS
n/a
ROD
n/a
Descent (FL100 & below)
IAS
n/a
MCS
n/a
ROD
n/a
Approach
Vapp (IAS)
n/a
Distance
560 m
