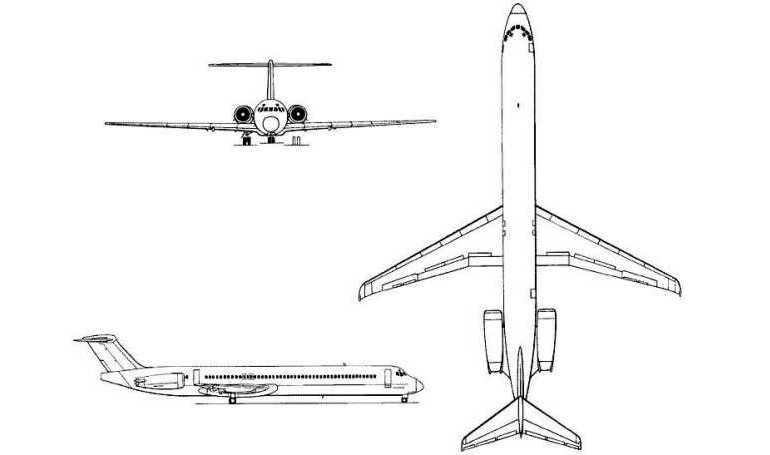

MCDONNELL DOUGLAS MD-83

Aircraft
Name:
MD-83
Manufacturer:
Body:
Narrow
Wing:
Fixed Wing
Position:
Low wing
Tail:
T-tail
WTC
M
APC
C
Type Code:
L2J
RFF Category:
7
Engine:
Jet
Engine Count:
Multi
Position:
Both sides of rear fuselage
Landing gear:
Tricycle retractable
Manufacturered as
BOEING MD-83
MCDONNELL DOUGLAS MD-83
SHANGHAI MD-83

MD83

Short to medium range airliner. In service since 1980. It has longer range and greater maximum take off mass (MTOW) than the other members of the MD-80 series. Produced until December 1999.

Technical Data
Wing span:
32.78 m
Length:
45.06 m
Height:
9.05 m
Powerplant:

2 x Pratt & Whitney JT8D-219 (93,41 kN).

Engine Model:
Pratt & Whitney JT8D
Indicative Performance Data
Take-Off
V2:
140 kts
Distance:
2052 m
MTOW:
72575 kg
Initial Climb (to 5000 ft)
IAS:
170 kts
ROC:
2500 ft/min
Initial Climb (to FL150)
IAS:
250 kts
ROC:
2800
Initial Climb (to FL240)
IAS:
250 kts
ROC:
2000 ft/min
MACH Climb
MACH:
0.75
ROC:
1000 ft/min
Cruise
TAS:
440 kts
MACH:
0.76
Ceiling:
370
Range:
2504 NM
Initial Descent (to FL240)
MACH:
0.74
ROD:
1500 ft/min
Descent (to FL100)
IAS:
290 kts
ROD:
1500 ft/min
Descent (FL100 & below)
IAS:
n/a
MCS:
210 kts
ROD:
n/a
Approach
Vapp (IAS):
144 kts
Distance:
1585 m
