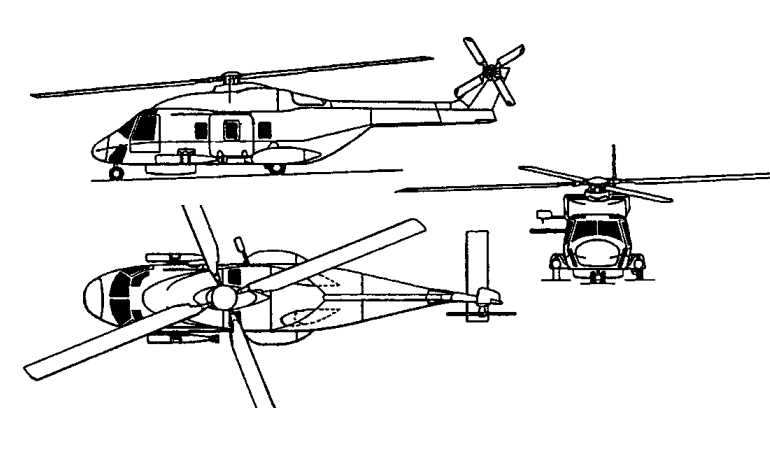

AIRBUS HELICOPTERS NHIndustries NH90

Aircraft
Name:
NHIndustries NH90
Manufacturer:
Body:
Narrow
Wing:
Rotary
Position:
Four-blade main rotor
Tail:
Four-blade tail rotor
Type Code:
H2T
Engine:
Turboshaft
Engine Count:
Multi
Position:
Above cabin
Landing gear:
Tricycle retractable
Manufacturered as
AUSTRALIAN AEROSPACE MRH-90
NHI Hkp 14
NHI MRH-90
NHI NH-90
PATRIA Hkp 14
PATRIA NH-90

NH90

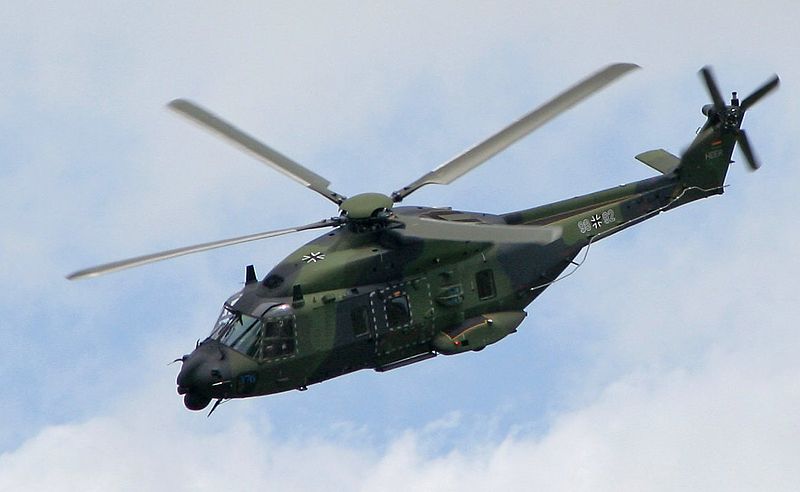

The NHIndustries NH90 is a medium sized, twin-engine, multi-role military helicopter. It was developed and is manufactured by NHIndustries, which collaborates with and is owned by Eurocopter and AgustaWestland. There are two variants, the Tactical Transport Helicopter (TTH) for Army use and the naval NATO Frigate Helicopter (NFH).

Technical Data
Wing span:
16.30 m
Length:
16.13 m
Height:
5.23 m
Powerplant:

2 x Rolls-Royce Turbomeca RTM322-01/9 turboshaft, 1,662 kW (2,230 shp) each, or

Engine Model:
General Electric CT7, Rolls-Royce/Turbomeca RTM322
Indicative Performance Data
Take-Off
V2:
n/a
Distance:
n/a
MTOW:
9100 kg
Initial Climb (to 5000 ft)
IAS:
n/a
ROC:
2000 ft/min
Initial Climb (to FL150)
IAS:
n/a
ROC:
n/a
Initial Climb (to FL240)
IAS:
n/a
ROC:
n/a
MACH Climb
MACH:
n/a
ROC:
n/a
Cruise
TAS:
140 kts
MACH:
n/a
Ceiling:
200
Range:
500 NM
Initial Descent (to FL240)
MACH:
n/a
ROD:
n/a
Descent (to FL100)
IAS:
n/a
ROD:
n/a
Descent (FL100 & below)
IAS:
n/a
MCS:
n/a
ROD:
n/a
Approach
Vapp (IAS):
n/a
Distance:
n/a
