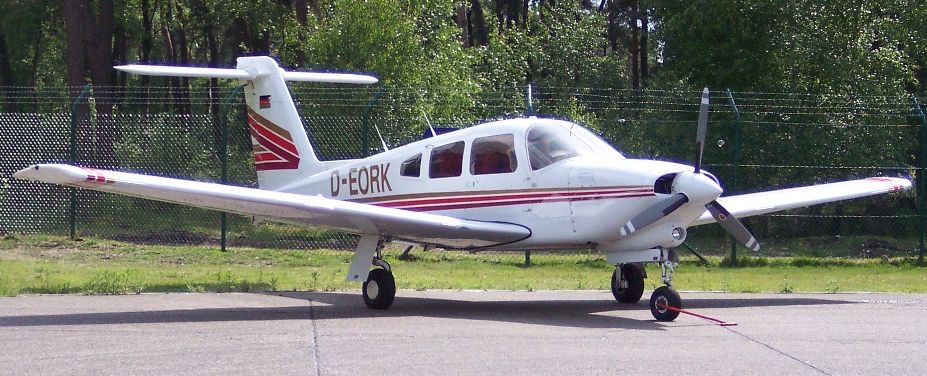

PIPER PA-28RT-201T Turbo Arrow 4

Aircraft
Name:
PA-28RT-201T Turbo Arrow 4
Manufacturer:
Body:
Narrow
Wing:
Fixed Wing
Position:
Low wing
WTC
L
APC
A
Type Code:
L1T
Engine:
Turboprop
Engine Count:
Single
Position:
Nose mounted
Landing gear:
Tricycle retractable
Manufacturered as
EMBRAER Corisco 2
EMBRAER Corisco 2 Turbo
EMBRAER EMB-711ST Corisco 2 Turbo
EMBRAER EMB-711T Corisco 2
NEIVA Corisco 2
NEIVA Corisco 2 Turbo
NEIVA EMB-711ST Corisco 2 Turbo
NEIVA EMB-711T Corisco 2
AICSA PA-28RT-201T Turbo Arrow 4
AICSA Turbo Arrow 4
CHINCUL Arrow 4
CHINCUL PA-A-28RT-201 Arrow 4
CHINCUL PA-A-28RT-201T Turbo Arrow 4
CHINCUL Turbo Arrow 4
PIPER Arrow 4
PIPER PA-28RT-201 Arrow 4
PIPER PA-28RT-201T Turbo Arrow 4
PIPER Turbo Arrow 4

P28T

Light aircraft. In service since 1979. More powerful turbocharged development of retractable PA-28R-200 Arrow 3 with T-tail. Production ceased in 1982, resumed again in 1989 and ceased once more in 1992. Licence production by AICSA, Columbia, and CHINCUL, Argentinia, also by EMBRAER and NAIWA, Brazil, as EMB-711T/ST Carisco, Carisco Turbo.

Technical Data
Wing span:
10.80 m
Length:
8.30 m
Height:
2.40 m
Powerplant:

1 x 200 HP Continental TSIO-360 -FB turbocharged piston engine with 2 blade propeller.

Engine Model:
Continental O-360
Indicative Performance Data
Take-Off
V2:
n/a
Distance:
294 m
MTOW:
1315 kg
Initial Climb (to 5000 ft)
IAS:
n/a
ROC:
900 ft/min
Initial Climb (to FL150)
IAS:
n/a
ROC:
n/a
Initial Climb (to FL240)
IAS:
n/a
ROC:
n/a
MACH Climb
MACH:
n/a
ROC:
n/a
Cruise
TAS:
156 kts
MACH:
n/a
Ceiling:
200
Range:
795 NM
Initial Descent (to FL240)
MACH:
n/a
ROD:
n/a
Descent (to FL100)
IAS:
n/a
ROD:
n/a
Descent (FL100 & below)
IAS:
n/a
MCS:
n/a
ROD:
n/a
Approach
Vapp (IAS):
n/a
Distance:
262 m
