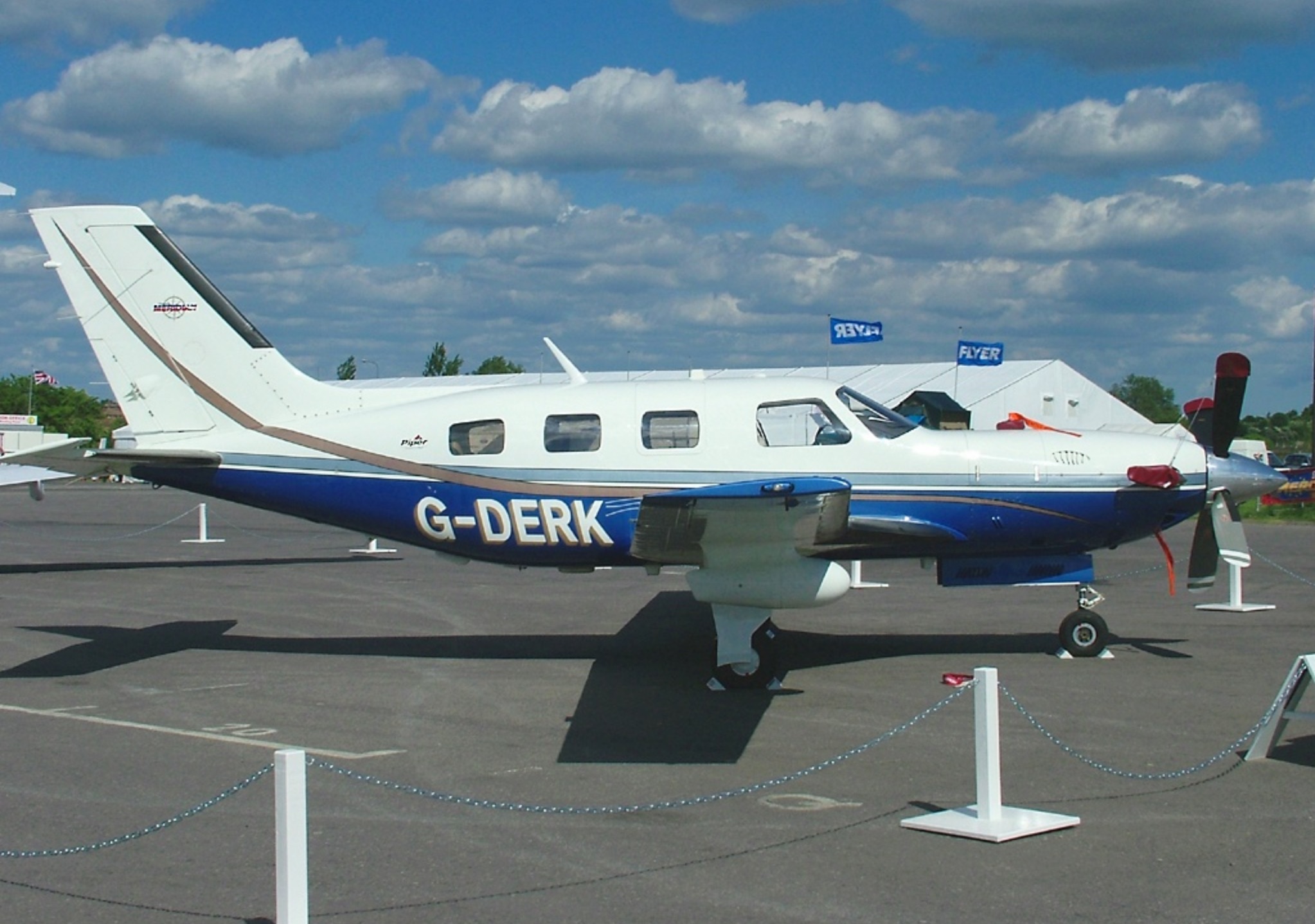

PIPER PA-46-500TP Malibu Meridian

Aircraft
Name:
PA-46-500TP Malibu Meridian
Manufacturer:
Body:
Narrow
Wing:
Fixed Wing
Position:
Low wing
Tail:
Regular tail, low set
WTC
L
APC
A
Type Code:
L1T
Engine:
Turboprop
Engine Count:
Single
Position:
Nose mounted
Landing gear:
Tricycle retractable
Manufacturered as
JETPROP DLX
PIPER Malibu Meridian
PIPER PA-46-500TP Malibu Meridian

P46T

High performance light aircraft. In service since 2000. Turboprop development of PA-46 Malibu with EFIS cockpit.

Technical Data
Wing span:
13.10 m
Length:
9.00 m
Height:
3.50 m
Powerplant:

1 x 1.209 SHP P&W PT6A-42A turboprop with 3 blade propeller.

Engine Model:
Pratt & Whitney Canada PT6
Indicative Performance Data
Take-Off
V2:
n/a
Distance:
518 m
MTOW:
2310 kg
Initial Climb (to 5000 ft)
IAS:
n/a
ROC:
1550 ft/min
Initial Climb (to FL150)
IAS:
n/a
ROC:
n/a
Initial Climb (to FL240)
IAS:
n/a
ROC:
n/a
MACH Climb
MACH:
n/a
ROC:
n/a
Cruise
TAS:
260 kts
MACH:
n/a
Ceiling:
300
Range:
1000 NM
Initial Descent (to FL240)
MACH:
n/a
ROD:
n/a
Descent (to FL100)
IAS:
n/a
ROD:
n/a
Descent (FL100 & below)
IAS:
n/a
MCS:
n/a
ROD:
n/a
Approach
Vapp (IAS):
n/a
Distance:
308 m
