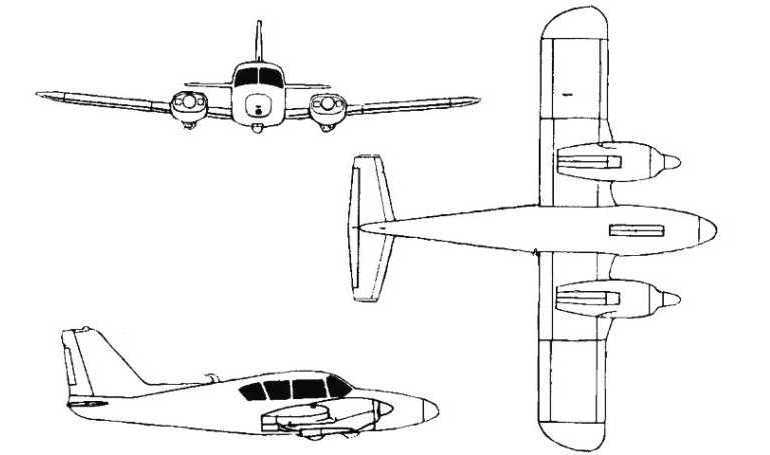

PIPER Aztec
PIPER Aztec
Aircraft
Name:
Aztec
Manufacturer:
Body:
Narrow
Wing:
Fixed Wing
Position:
Low wing
Tail:
Regular tail, mid set
WTC:
L
APC:
A
Type Code:
L2P
Engine:
Piston
Engine Count:
Multi
Position:
(Front) Wing leading mounted
Landing gear:
Tricycle retractable
Manufacturered as
CHINCUL Aztec
CHINCUL PA-A-23-250 Aztec
PIPER Aztec
PIPER PA-23-235 Aztec
PIPER PA-23-250 Aztec
PIPER PA-23-250 Turbo Aztec
PIPER Turbo Aztec
PIPER U-11 Aztec
PIPER UC-26 Aztec
PA27
Light twin aircraft. In service since 1960. PA-23-250 Aztec more powerful turbocharged development of PA-23-150/160 Apache. Production ceased in 1982 after 4929 aircraft were built including a small number for military operators.
Technical Data
Wing span:
11.40 m
Length:
9.50 m
Height:
3.10 m
Powerplant:
2 x 235 HP Lycoming O-540-B1A5 piston engines or
Engine Model:
Lycoming O-540
Indicative Performance Data
Take-Off
V2:
n/a
Distance:
302 m
MTOW:
2360 kg
Initial Climb (to 5000 ft)
IAS:
n/a
ROC:
1400 ft/min
Initial Climb (to FL150)
IAS:
n/a
ROC:
n/a
Initial Climb (to FL240)
IAS:
n/a
ROC:
n/a
MACH Climb
MACH:
n/a
ROC:
n/a
Cruise
TAS:
180 kts
MACH:
n/a
Ceiling:
175
Range:
1320 NM
Initial Descent (to FL240)
MACH:
n/a
ROD:
n/a
Descent (to FL100)
IAS:
n/a
ROD:
n/a
Descent (FL100 & below)
IAS:
n/a
MCS:
n/a
ROD:
n/a
Approach
Vapp (IAS):
n/a
Distance:
232 m
