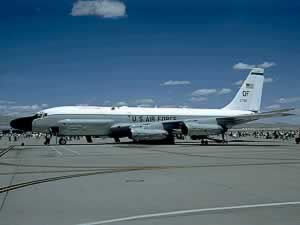

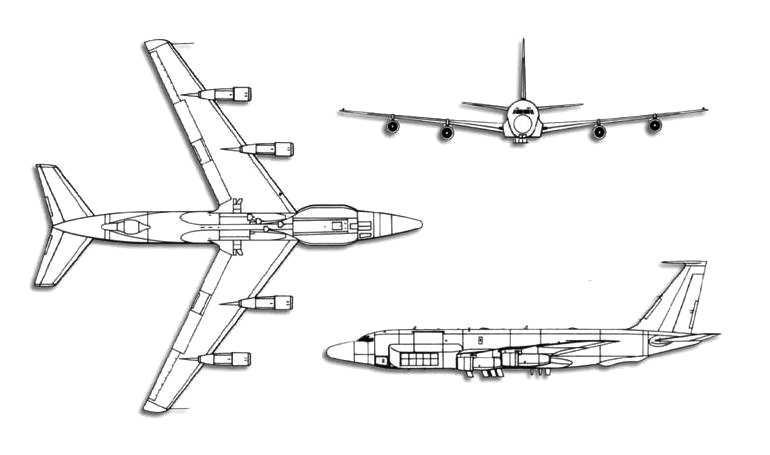

BOEING RC-135

Aircraft
Name:
RC-135
Manufacturer:
Body:
Narrow
Wing:
Fixed Wing
Position:
Low wing
Tail:
Regular tail, mid set
WTC
H
APC
D
Type Code:
L4J
Engine:
Jet
Engine Count:
Multi
Position:
Underwing mounted
Landing gear:
Tricycle retractable
Manufacturered as
BOEING RC-135

R135

Special missions aircraft. Special missions adaptions based on the C-135 airframe. Originally developed as EC-135 command post for the B-52 nuclear bomber fleet. RC-135U, RC-135V Rivet Joint and RC-135W signals intelligence variants with automatic ELINT emitter locator system. RC-135V and RC-135W with nose featuring further sensor. TC-135W crew trainig version. RC-135S Cobra Ball for balistic missile launch detection. The US Air Force is re-engining its RC-135s with CFM engines.

Technical Data
Wing span:
39.90 m
Length:
41.50 m
Height:
12.70 m
Powerplant:

4 x 80.1 kN P&W TF33-P9 or 4 x 106.8 kN CFM 56-2A2/3 turbofans.

Engine Model:
CFM International CFM56, Pratt & Whitney TF33
Indicative Performance Data
Take-Off
V2:
n/a
Distance:
n/a
MTOW:
136000 kg
Initial Climb (to 5000 ft)
IAS:
n/a
ROC:
3000 ft/min
Initial Climb (to FL150)
IAS:
n/a
ROC:
n/a
Initial Climb (to FL240)
IAS:
n/a
ROC:
n/a
MACH Climb
MACH:
n/a
ROC:
n/a
Cruise
TAS:
486 kts
MACH:
n/a
Ceiling:
410
Range:
4900 NM
Initial Descent (to FL240)
MACH:
n/a
ROD:
n/a
Descent (to FL100)
IAS:
n/a
ROD:
n/a
Descent (FL100 & below)
IAS:
n/a
MCS:
n/a
ROD:
n/a
Approach
Vapp (IAS):
n/a
Distance:
n/a
