R22

ROBINSON R-22

Aircraft
Name
R-22
Manufacturer
Wing
Rotary
Position
Two-blade main rotor
Tail
Two-blade tail rotor
WTC
L
Type Code
H1P
Engine
Piston
Engine Count
Single
Position
Above cabin
Landing gear
Skids
Manufacturered as
ROBINSON R-22 Beta
ROBINSON R-22
ROBINSON Mariner
ROBINSON Beta
ROBINSON R-22 Mariner

R22

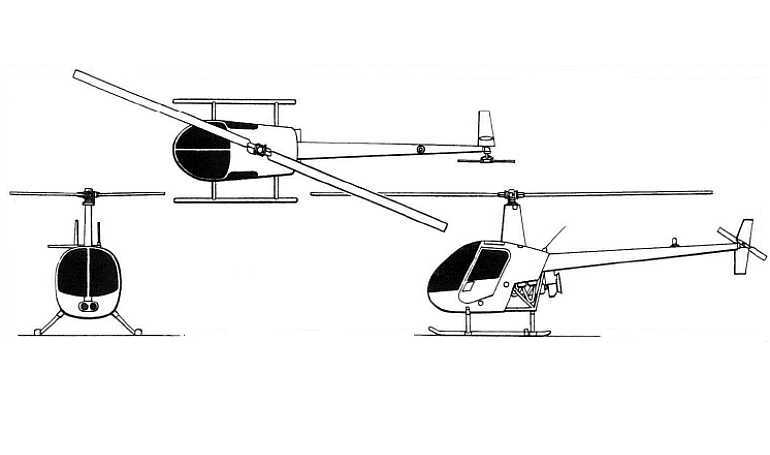

The Robinson R22 is a two-bladed, single-engine light utility helicopter manufactured by Robinson Helicopter. The two-seat R22 was designed in 1973 by Frank Robinson and has been in production since 1979.

Technical Data
Wing span (metric)
7.70 m
Length (metric)
8.70 m
Height (metric)
2.70 m
Powerplant

1× Lycoming O-320-A2B or -A2C flat 4 piston engine, 124 hp (93 kW).

Indicative Performance Data
Take-Off
V2
n/a
Distance
n/a
MTOW
600 kg
Initial Climb (to 5000 ft)
IAS
n/a
ROC
1200 ft/min
Initial Climb (to FL150)
IAS
n/a
ROC
n/a
Initial Climb (to FL240)
IAS
n/a
ROC
n/a
MACH Climb
MACH
n/a
ROC
n/a
Cruise
TAS
82 kts
MACH
n/a
Ceiling
140
Range
310 NM
Initial Descent (to FL240)
MACH
n/a
ROD
n/a
Descent (to FL100)
IAS
n/a
ROD
n/a
Descent (FL100 & below)
IAS
n/a
MCS
n/a
ROD
n/a
Approach
Vapp (IAS)
n/a
Distance
n/a
