SIKORSKY S-76

Aircraft
Name:
S-76
Manufacturer:
Body:
Narrow
Wing:
Rotary
Position:
Four-blade main rotor
Tail:
Four-blade tail rotor
WTC
M
Type Code:
H2J
Engine:
Turboshaft
Engine Count:
Multi
Position:
Above cabin
Landing gear:
Tricycle retractable
Manufacturered as
SIKORSKY AUH-76
SIKORSKY Eagle
SIKORSKY H-76 Eagle
SIKORSKY S-76
SIKORSKY S-76 Spirit
SIKORSKY Spirit
KEYSTONE S-76

S76

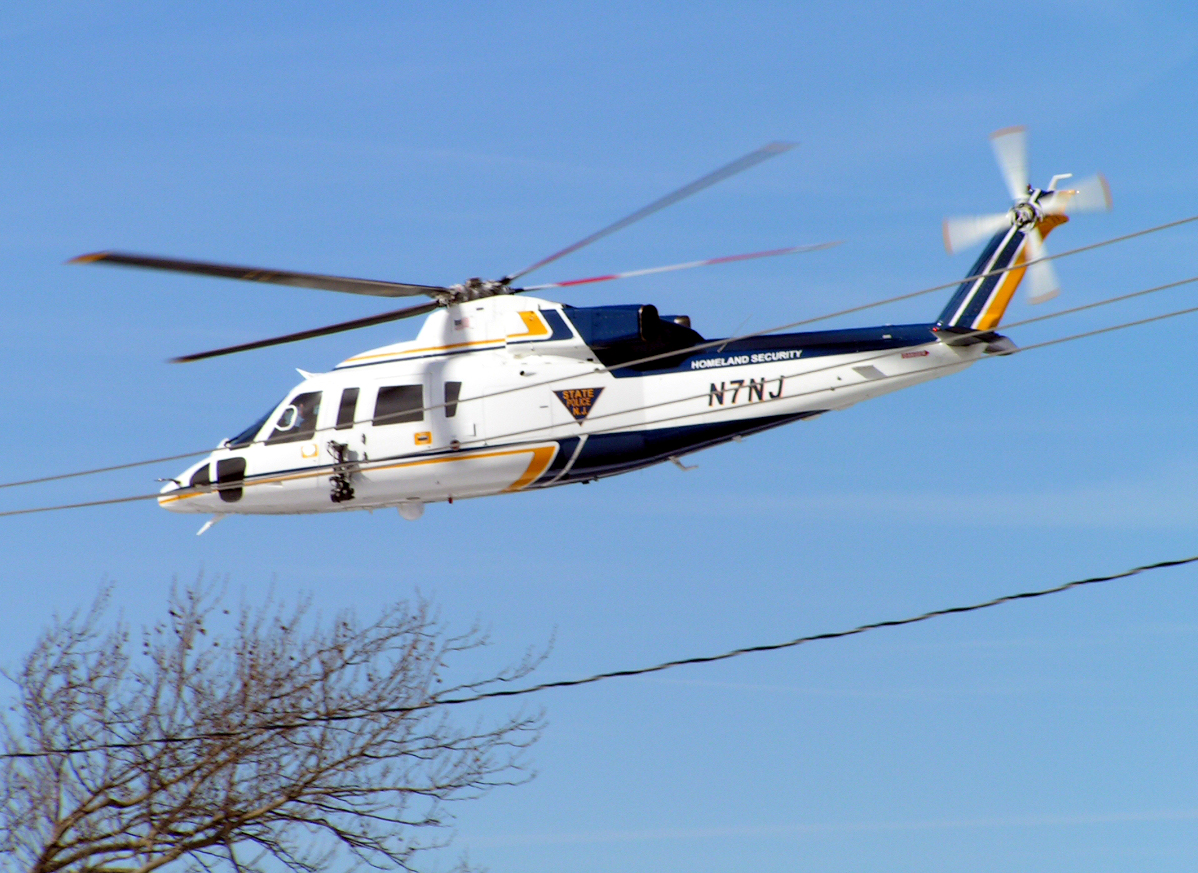

The Sikorsky S-76 is an American multi-purpose medium-size commercial helicopter. The S-76 is powered by two turboshafts which combine to drive the main and tail rotors, each with four blades. The S-76 landing gear is retractable.

Technical Data
Wing span:
13.41 m
Length:
16.00 m
Height:
4.41 m
Powerplant:

2 x Turboméca Arriel 2S2 turboshafts, over 500 kW each.

Engine Model:
Turboméca Arriel
Indicative Performance Data
Take-Off
V2:
n/a
Distance:
n/a
MTOW:
4536 kg
Initial Climb (to 5000 ft)
IAS:
n/a
ROC:
1300 ft/min
Initial Climb (to FL150)
IAS:
n/a
ROC:
n/a
Initial Climb (to FL240)
IAS:
n/a
ROC:
n/a
MACH Climb
MACH:
n/a
ROC:
n/a
Cruise
TAS:
155 kts
MACH:
n/a
Ceiling:
150
Range:
600 NM
Initial Descent (to FL240)
MACH:
n/a
ROD:
n/a
Descent (to FL100)
IAS:
n/a
ROD:
n/a
Descent (FL100 & below)
IAS:
n/a
MCS:
n/a
ROD:
n/a
Approach
Vapp (IAS):
n/a
Distance:
n/a
