TUPOLEV Tu-154

Aircraft
Name:
Tu-154
Manufacturer:
Body:
Narrow
Wing:
Fixed Wing
Position:
Low wing (anhedral with cone)
Tail:
T-tail
WTC
M
APC
C
Type Code:
L3J
Engine:
Jet
Engine Count:
Multi
Position:
Both sides of rear fuselage and fin-integrated
Landing gear:
Tricycle retractable
Manufacturered as

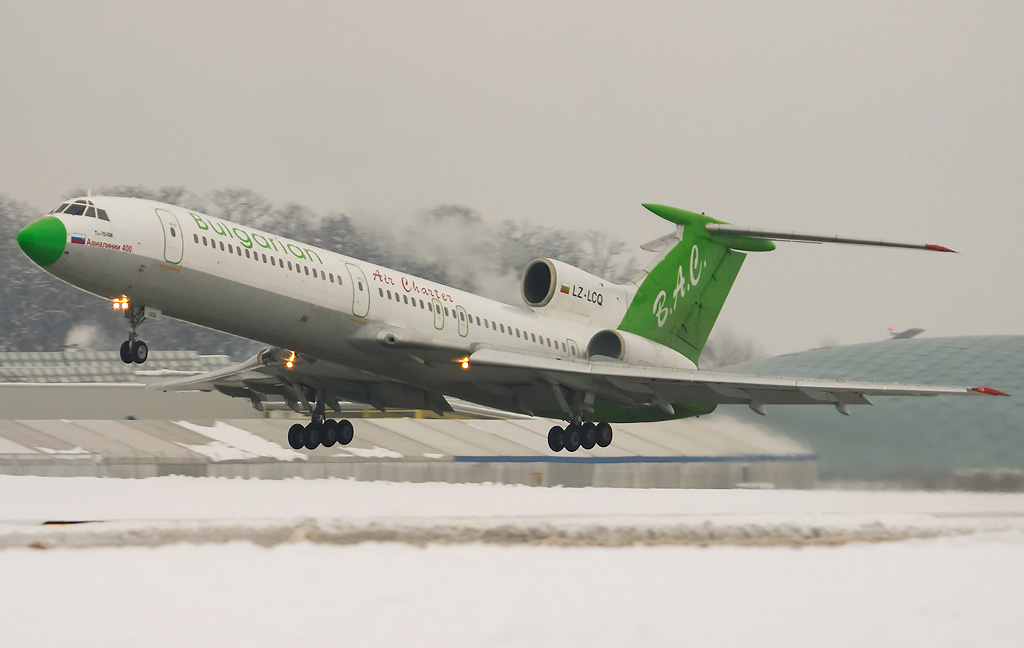

TUPOLEV Tu-154

T154

Medium range airliner. In service since 1971. Developed to replace the turbojet powered TU-104 and the turboprop powered IL-18. Built in a few versions: TU-154A with more powerful engines, TU-154B with higher take-off weight and TU-154B freighter version. Current production TU-154M more economical with quieter engines. The Tu-154 is in 2000 still the most used airliner of CIS airline companies.

Technical Data
Wing span:
37.50 m
Length:
48.00 m
Height:
11.40 m
Powerplant:

154: 3 x Kuznetsov Nk-8-2 (93,9 kN) turbofans

Engine Model:
Kuznetsov NK-8, Soloviev D-30
Indicative Performance Data
Take-Off
V2:
150 kts
Distance:
2100 m
MTOW:
100000 kg
Initial Climb (to 5000 ft)
IAS:
180 kts
ROC:
3000 ft/min
Initial Climb (to FL150)
IAS:
290 kts
ROC:
2000
Initial Climb (to FL240)
IAS:
290 kts
ROC:
2000 ft/min
MACH Climb
MACH:
0.72
ROC:
1500 ft/min
Cruise
TAS:
475 kts
MACH:
0.82
Ceiling:
410
Range:
1700 NM
Initial Descent (to FL240)
MACH:
0.72
ROD:
800 ft/min
Descent (to FL100)
IAS:
290 kts
ROD:
3500 ft/min
Descent (FL100 & below)
IAS:
n/a
MCS:
220 kts
ROD:
n/a
Approach
Vapp (IAS):
130 kts
Distance:
2100 m
