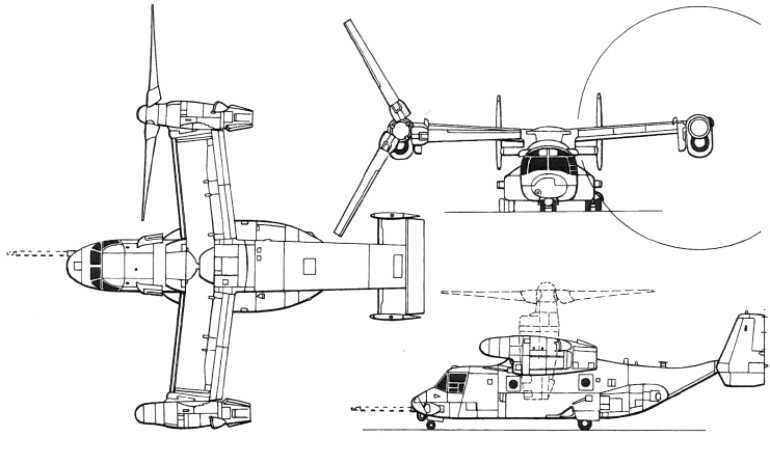

BELL-BOEING V-22

Aircraft
Name:
V-22
Manufacturer:
Body:
Narrow
Wing:
Rotary
Position:
Three-blade tandem rotors
Tail:
Double fin, low set
WTC
M
Type Code:
T2T
Engine:
Turboshaft
Engine Count:
Multi
Position:
(Front) Wing leading mounted
Landing gear:
Tricycle retractable
Manufacturered as
BELL-BOEING 901 Osprey
BELL-BOEING CV-22 Osprey
BELL-BOEING MV-22 Osprey
BELL-BOEING Osprey
BELL-BOEING V-22 Osprey

V22

The Bell-Boeing V-22 Osprey is an American multi-mission, military, tiltrotor aircraft with both a vertical takeoff and landing (Vertical Take-Off and Landing (VTOL)), and short takeoff and landing (Short Take-Off and Landing (STOL)) capability. It is designed to combine the functionality of a conventional helicopter with the long-range, high-speed cruise performance of a turboprop aircraft.

Technical Data
Wing span:
25.80 m
Length:
17.50 m
Height:
6.73 m
Powerplant:

2 x Rolls-Royce Allison T406/AE 1107C-Liberty turboshafts, 6,150 hp (4,590 kW) each.

Engine Model:
Rolls-Royce AE 1107C-Liberty
Indicative Performance Data
Take-Off
V2:
n/a
Distance:
n/a
MTOW:
27400 kg
Initial Climb (to 5000 ft)
IAS:
n/a
ROC:
600 ft/min
Initial Climb (to FL150)
IAS:
n/a
ROC:
n/a
Initial Climb (to FL240)
IAS:
n/a
ROC:
n/a
MACH Climb
MACH:
n/a
ROC:
n/a
Cruise
TAS:
275 kts
MACH:
n/a
Ceiling:
260
Range:
1730 NM
Initial Descent (to FL240)
MACH:
n/a
ROD:
n/a
Descent (to FL100)
IAS:
n/a
ROD:
n/a
Descent (FL100 & below)
IAS:
n/a
MCS:
n/a
ROD:
n/a
Approach
Vapp (IAS):
n/a
Distance:
n/a
