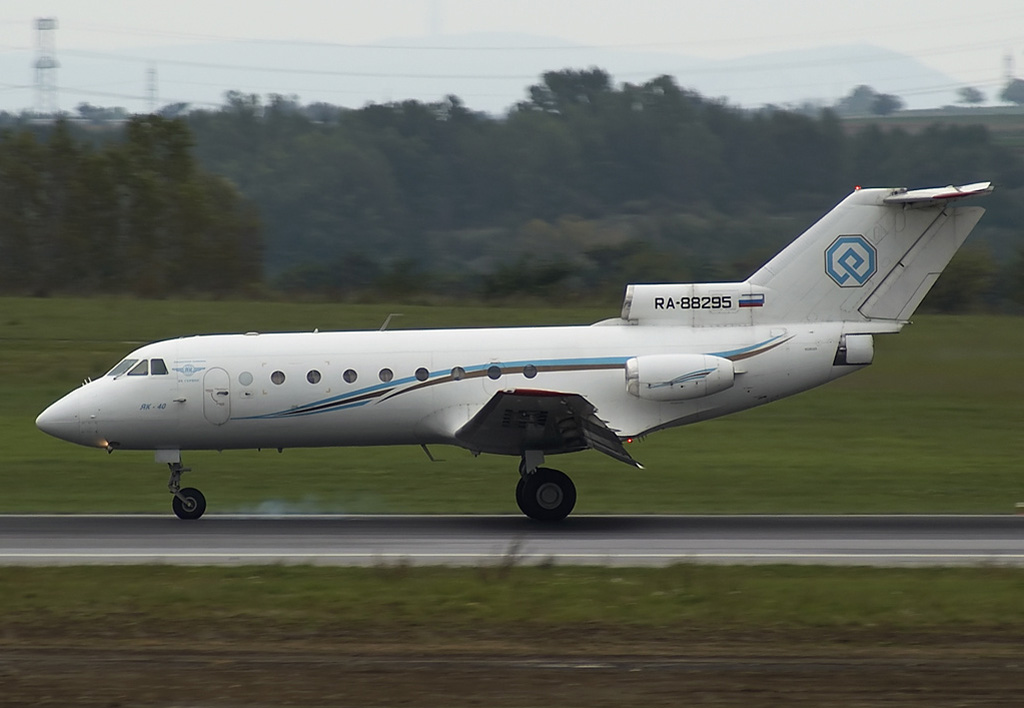

YAKOVLEV Yak-40

Aircraft
Name:
Yak-40
Manufacturer:
Body:
Narrow
Wing:
Fixed Wing
Position:
Low wing
Tail:
T-tail
WTC
M
APC
B
Type Code:
L3J
Engine:
Jet
Engine Count:
Multi
Position:
Both sides of rear fuselage and fin-integrated
Landing gear:
Tailwheel retractable
Manufacturered as
YAKOVLEV Yak-40

YK40

Short range regional airliner. In service since 1968. Developed to operate from non paved runways. Reverse thrust only on center engine. Yak-40M stretched version for 40 passengers. In 2000 still used by many GUS airliners.

Technical Data
Wing span:
25.00 m
Length:
20.40 m
Height:
6.50 m
Powerplant:

3 x 14.7 KN Ivchenko AI-25 turbofans. 40TL: 2 x 31,1 KN Lycoming LF507-1N turbofans.

Engine Model:
Ivchenko AI-25, Lycoming LF507
Indicative Performance Data
Take-Off
V2:
110 kts
Distance:
700 m
MTOW:
16000 kg
Initial Climb (to 5000 ft)
IAS:
130 kts
ROC:
1300 ft/min
Initial Climb (to FL150)
IAS:
200 kts
ROC:
1000
Initial Climb (to FL240)
IAS:
200 kts
ROC:
800 ft/min
MACH Climb
MACH:
n/a
ROC:
n/a
Cruise
TAS:
245 kts
MACH:
n/a
Ceiling:
280
Range:
1000 NM
Initial Descent (to FL240)
MACH:
n/a
ROD:
n/a
Descent (to FL100)
IAS:
200 kts
ROD:
2500 ft/min
Descent (FL100 & below)
IAS:
200 kts
MCS:
170 kts
ROD:
1000 ft/min
Approach
Vapp (IAS):
120 kts
Distance:
400 m
